The backbone of superior strength and insulation performance

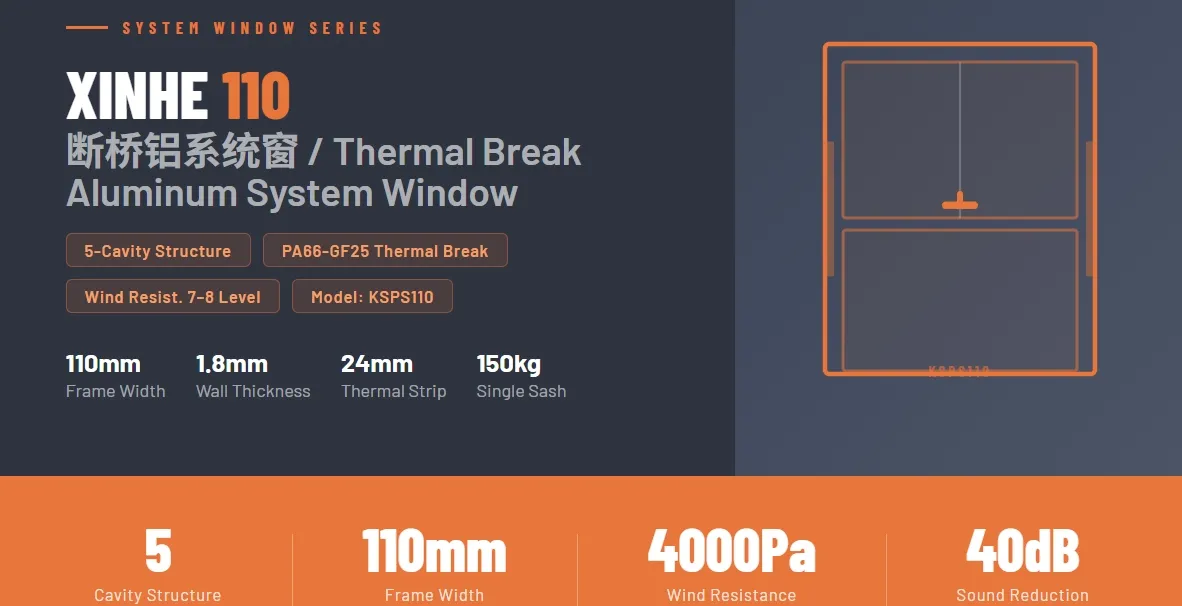

| Parameter | Specification |
|---|---|
| Model | KSPS110 |
| Frame Width | 110 mm |
| Profile Material | 6063-T5 Virgin Aluminium Alloy |
| Wall Thickness | 1.8mm (Standard) / 2.0mm (Upgrade Option) |
| Thermal Strip | PA66-GF25 Nylon, Width 24mm, Vertical Isotherm |

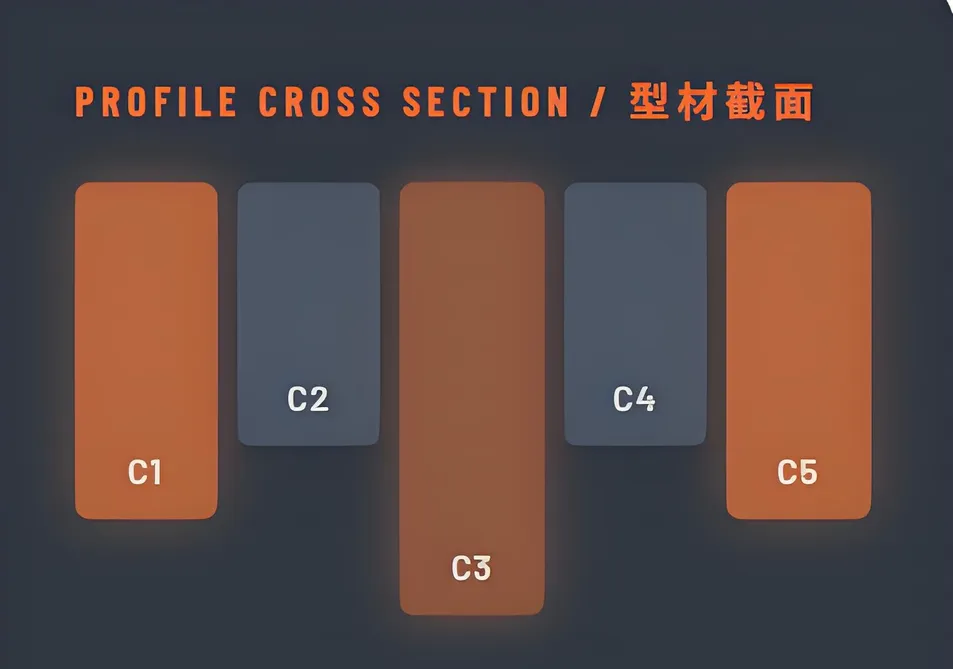

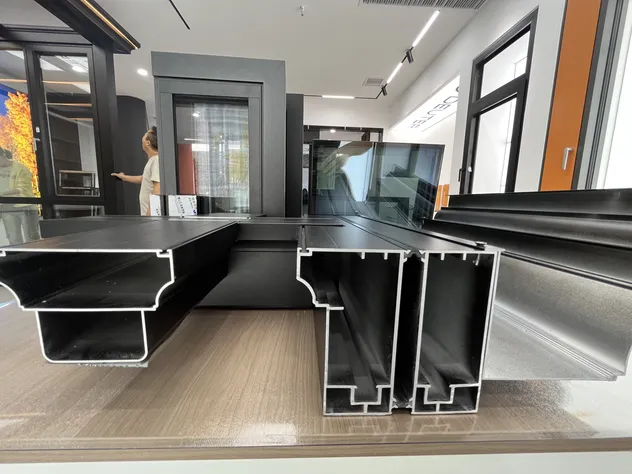

| Structure | 5-Cavity + Reinforcement Rib |
| Corner Joint | 45° Cast Aluminum + SS Pins + Dual-Component Adhesive |
| Sealing | Automotive-Grade EPDM Triple Seal |
| Drainage | Ground-Drain Vertical + Concealed Holes |
| Hardware | HOPPE / EUROPACE (Standard) · Winkhaus / Roto (Optional) |
| Screen | 304 SS Diamond Mesh 14-Mesh, Removable |
| Visible Face | 28–30mm (Sash) · Flush Interior & Exterior |
| Surface Treatment | Powder Coating / PVDF / Wood Grain Transfer |
| Color Options | White, Grey, Black, Coffee, Wood Grain + Custom |
High-rise safe ventilation + classic casement — all in one system

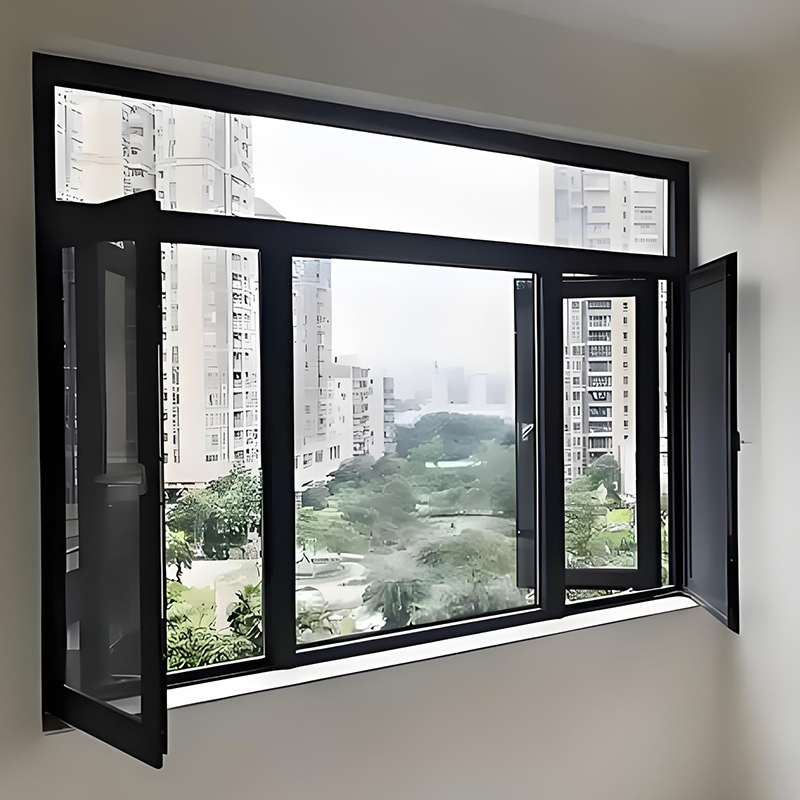

Classic inward casement for easy exterior cleaning from inside. Most common choice for mid-rise residential buildings.

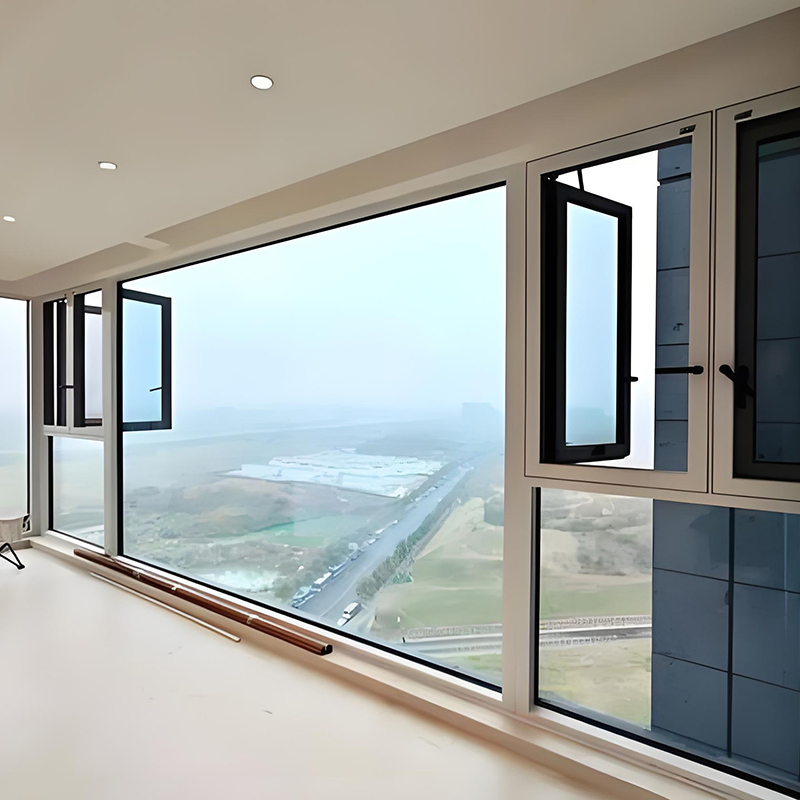

Dual-function hardware: tilt at top for safe micro-ventilation, or turn fully open. Highly recommended for high-rise buildings.

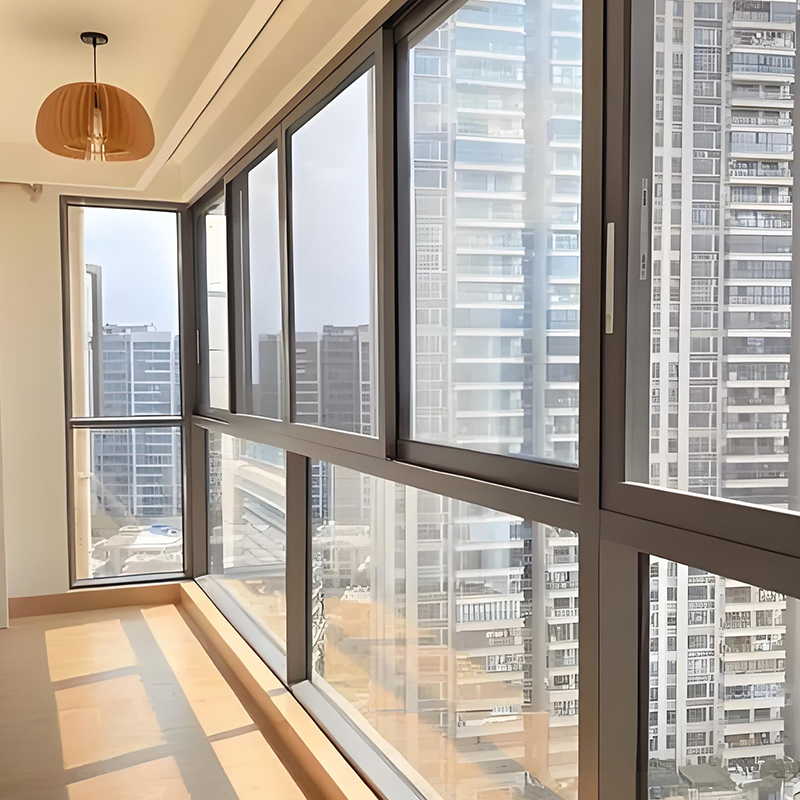

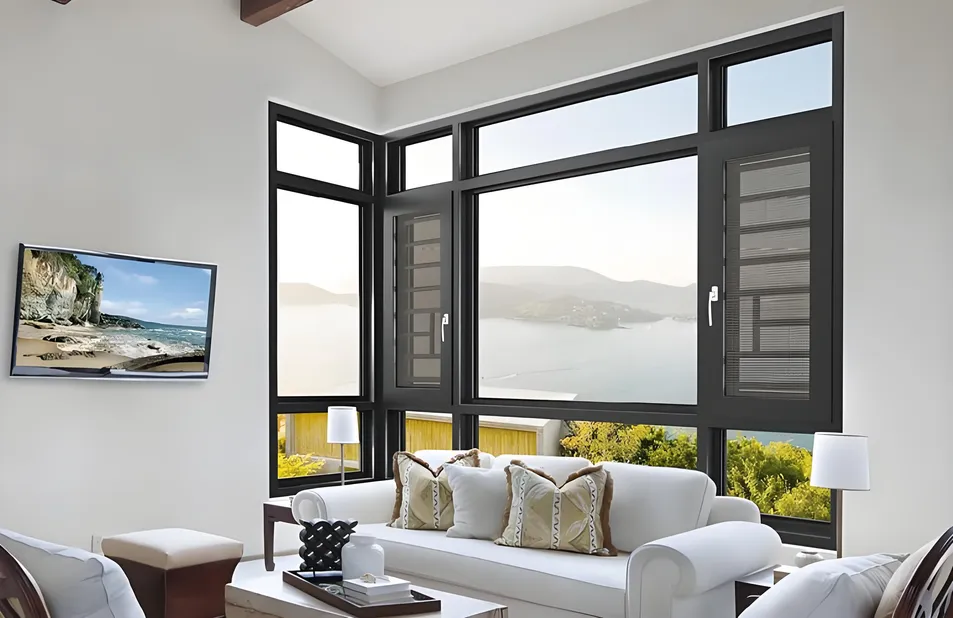

The 28–30mm narrow visible face and integrated screen deliver a premium, minimalist aesthetic. Floor-to-ceiling window configurations possible with 150kg single sash load capacity.

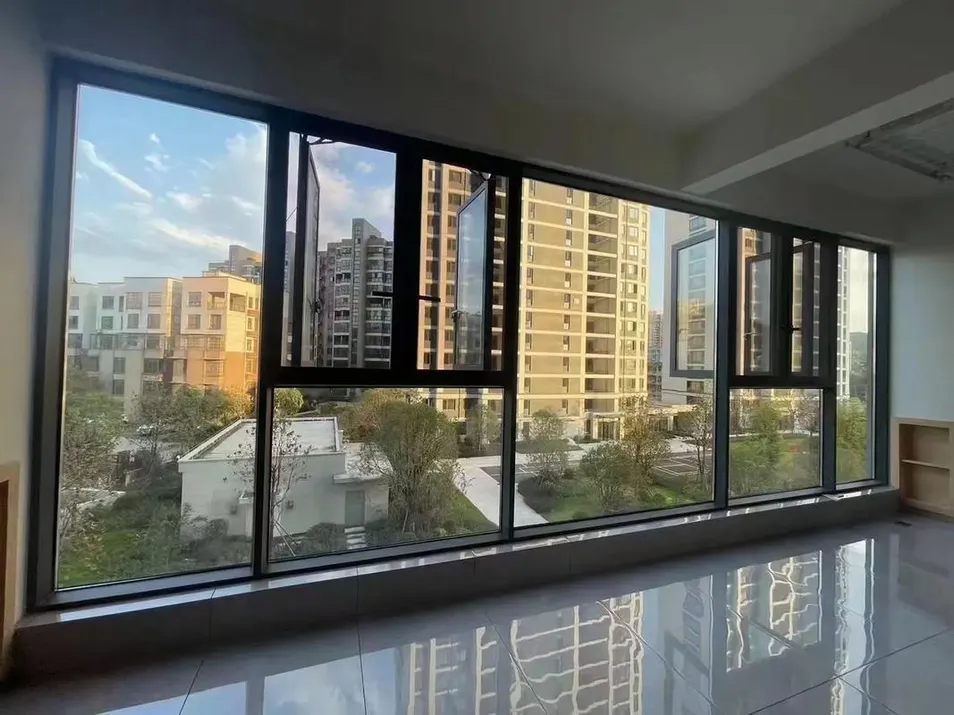

Grade 7–8 wind resistance with tilt-turn operation ensures safe ventilation without risk. Excellent acoustic performance shields residents from urban noise.

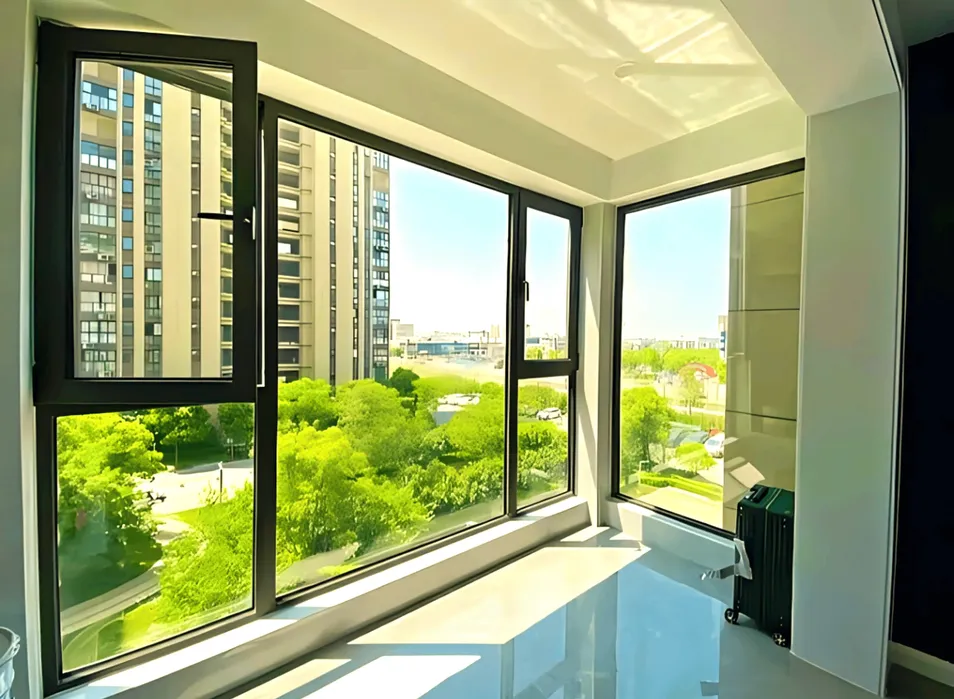

≥4000Pa wind resistance and 5-cavity structural rigidity make it an ideal choice for coastal regions, islands, and areas prone to extreme weather events.

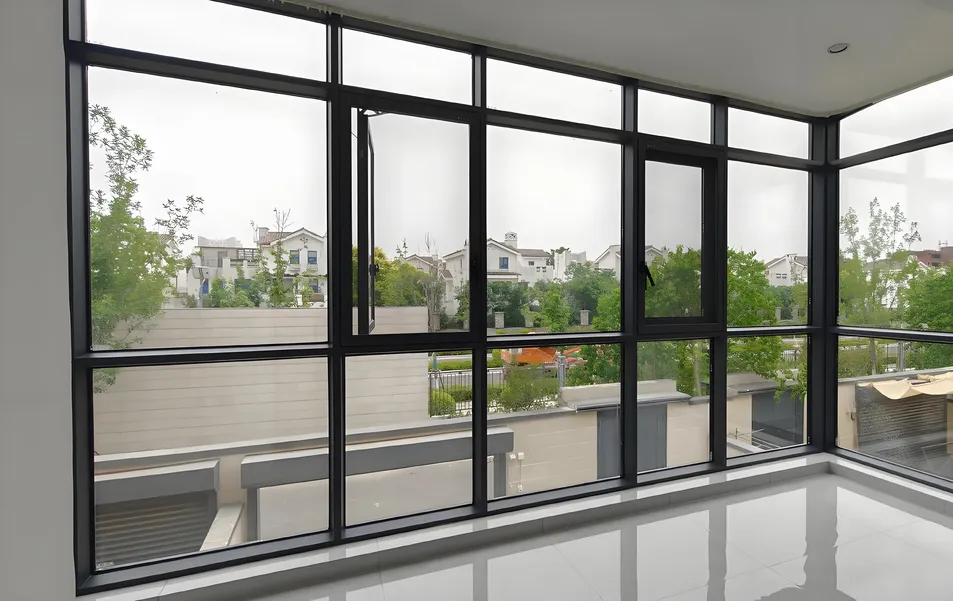

40dB+ sound insulation ensures guest comfort. Low-E glass reduces HVAC energy costs. Elegant flush exterior matches architectural requirements.
Our comprehensive product range spans thermal break casement windows, sliding windows, system windows (tilt & turn), swing doors, sliding doors (ultra-narrow & heavy-duty lifting), custom folding doors & windows, sunrooms, and aluminium profiles & hardware accessories — covering every aluminium fenestration need from a single supplier. We serve residential developers, commercial contractors, and importers across 30+ countries with factory-direct pricing, OEM/ODM flexibility, and reliable lead times.
The KSPS110 stands out due to its integrated insect screen (flush structure), superior thermal insulation using a 24mm wide PA66-GF25 nylon thermal break strip, reinforced corner joints with dual-component adhesive, hidden vertical drainage, and high-performance German and EU hardware compatibility.
It utilizes a 24mm wide PA66-GF25 nylon thermal strip containing 25% glass fiber. The strip uses "vertical isotherm" technology where frame and sash thermal breaks align precisely to block thermal bridging, keeping the U-value/K-value under 2.0 W/(m²·K).

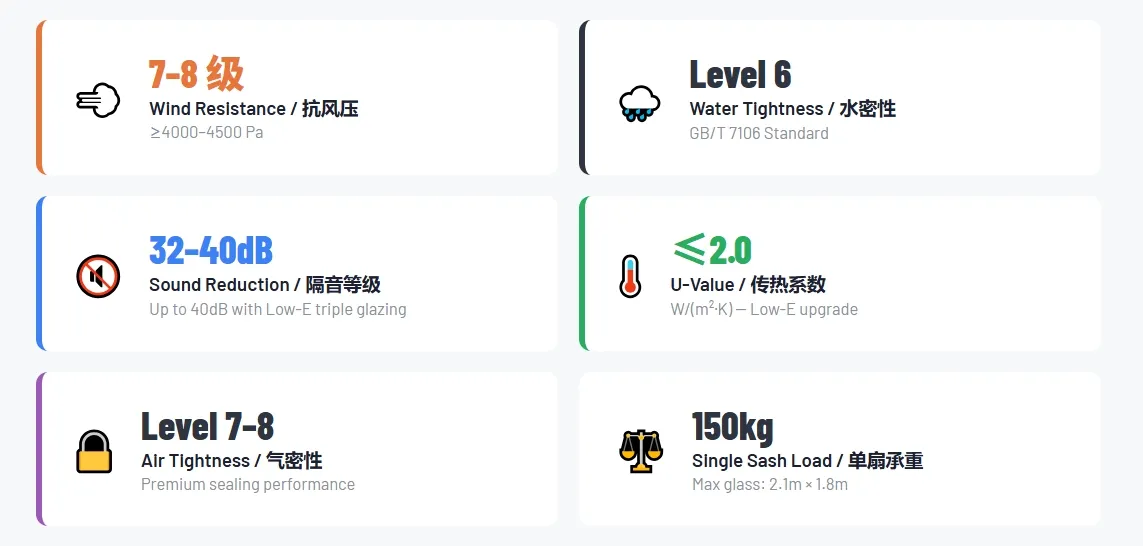

Yes. It features a 5-cavity structure with reinforcement ribs, achieving wind resistance of ≥4000Pa (equivalent to Grade 7–8). This makes it highly secure for high-rise apartments, coastal locations, and wind-prone environments.

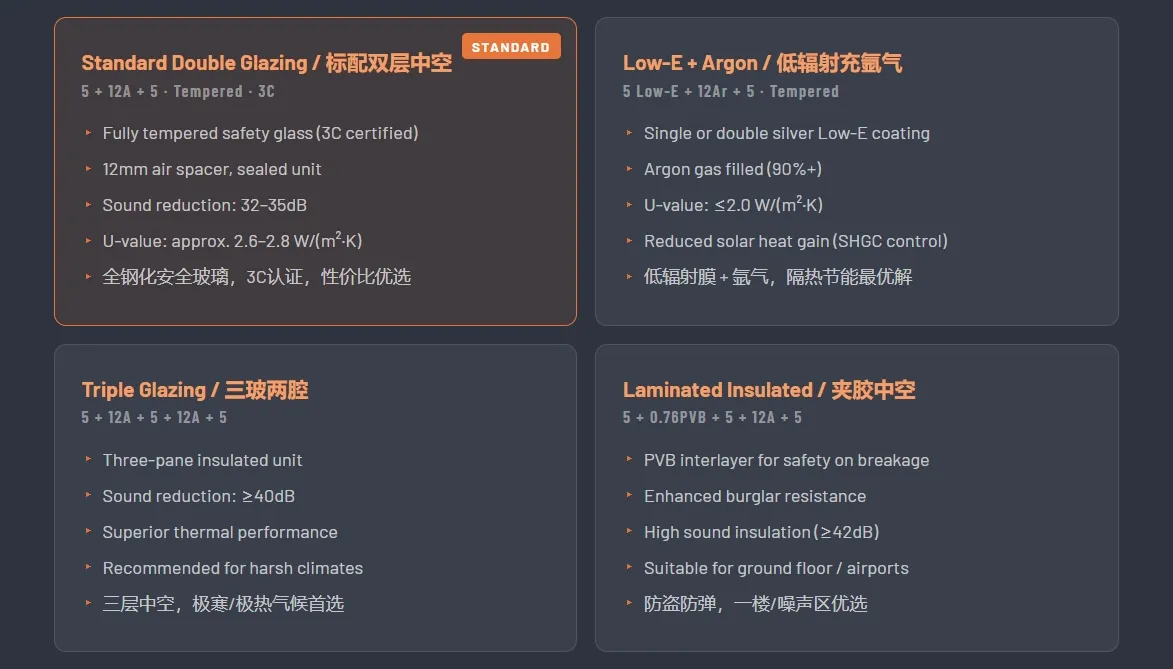

We offer flexible double glazing and triple glazing options. Standard glass panels are 5mm thick, and we can configure various glass structures with Low-E coatings, tinted glass, or argon gas infill to optimize for thermal insulation and climate requirements.
Inward opening operates as a classic casement swing, allowing easy outer glass cleaning from inside. Tilt & Turn utilizes dual-function hardware that can tilt inward at the top for secure, draft-free micro-ventilation, or turn completely inward for maximum airflow.
We wrap frames and glass with pearl cotton (EPE foam), place corner protectors on all four corners, cover the unit with moisture-proof and stretch film, and secure them on heavy-duty wooden pallets or inside crates to prevent damage during sea or air shipping.
