Engineered for comfort, built to last — every detail designed with precision
PA66 nylon thermal break strip (25% glass fiber reinforced) with 20–24mm width effectively blocks heat transfer. Combined with double/triple glazing, U-value reaches 2.6–3.0 W/m²·K, upgradeable to 1.8 W/m²·K with Low-E glass.
Multi-cavity structure + triple seal EPDM gaskets + insulated glass effectively blocks 35dB+ exterior noise. Ideal for homes near highways, airports, and busy streets.
Multi-point locking system + 304 stainless steel diamond mesh screen + 1.8mm thickened profile. Excellent wind pressure and anti-theft performance for high-rise buildings.
Hidden drainage system prevents water accumulation. Triple-seal EPDM structure ensures airtight performance even during heavy rain.
Flush frame-sash design for a sleek, uniform appearance. Inward opening options make exterior glass cleaning safe and effortless.
| Parameter | Specification Details |
|---|---|
| Model | KSPC90 |
| Frame Width | 90mm (±2mm) |
| Profile Material | 6063-T5 Aluminum Alloy (Virgin) |
| Wall Thickness | 1.8mm (Standard), 2.0mm (Export Option) |

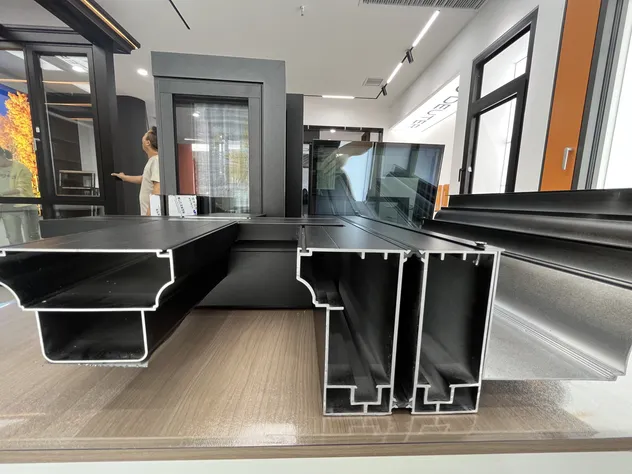

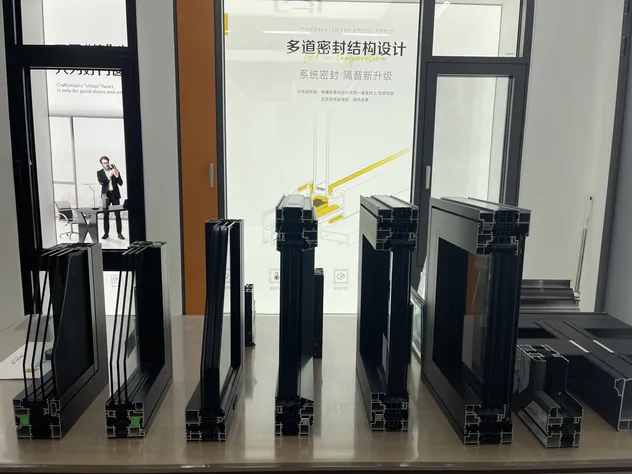

| Structure | Multi-Cavity Thermal Break |
| Thermal Strip | PA66 Nylon (25% GF), Width 20–24mm |
| Surface Treatment | Powder Coating / PVDF / Wood Grain Transfer |
| Color Options | White, Grey, Black, Coffee, Wood Grain (Customizable) |
| Sealing | Triple Seal EPDM Gaskets |
| Hardware | Brand Hardware (HOPO / Stanford / etc.) |
| Screen | 304 Stainless Steel Diamond Mesh (Removable) |
| Standards | CE / EN 14351-1 · AS2047 · NFRC · GB/T 8478-2020 |

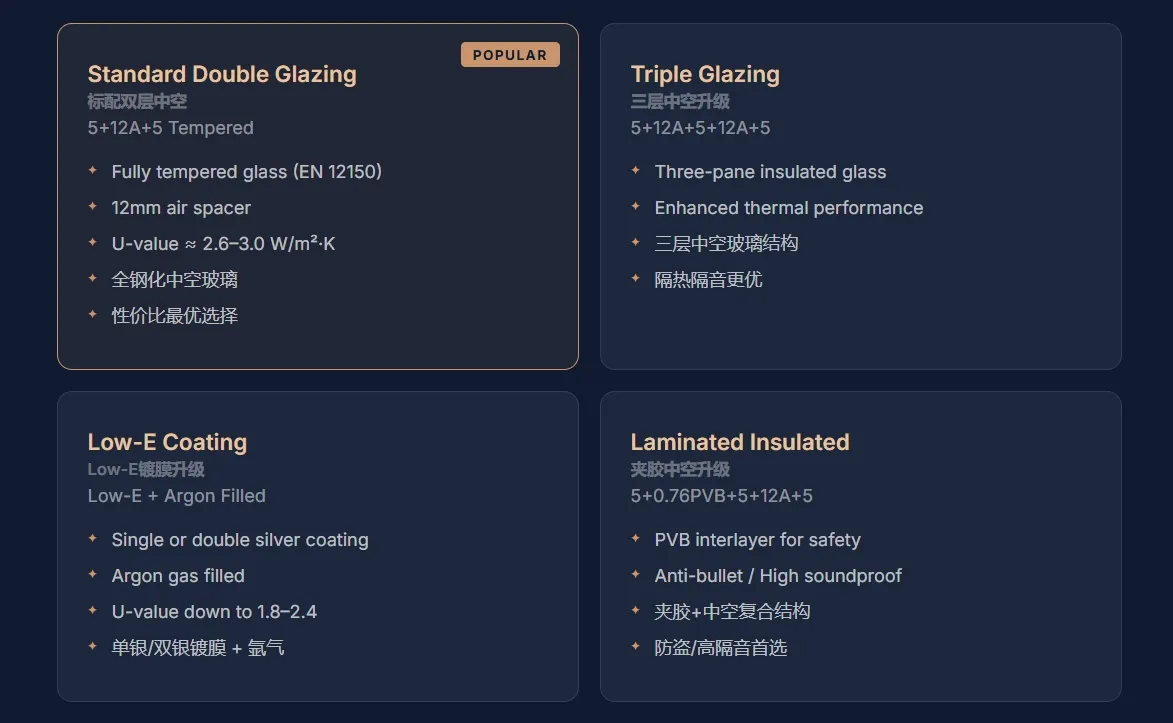

From standard double glazing to advanced triple Low-E — choose the performance you need

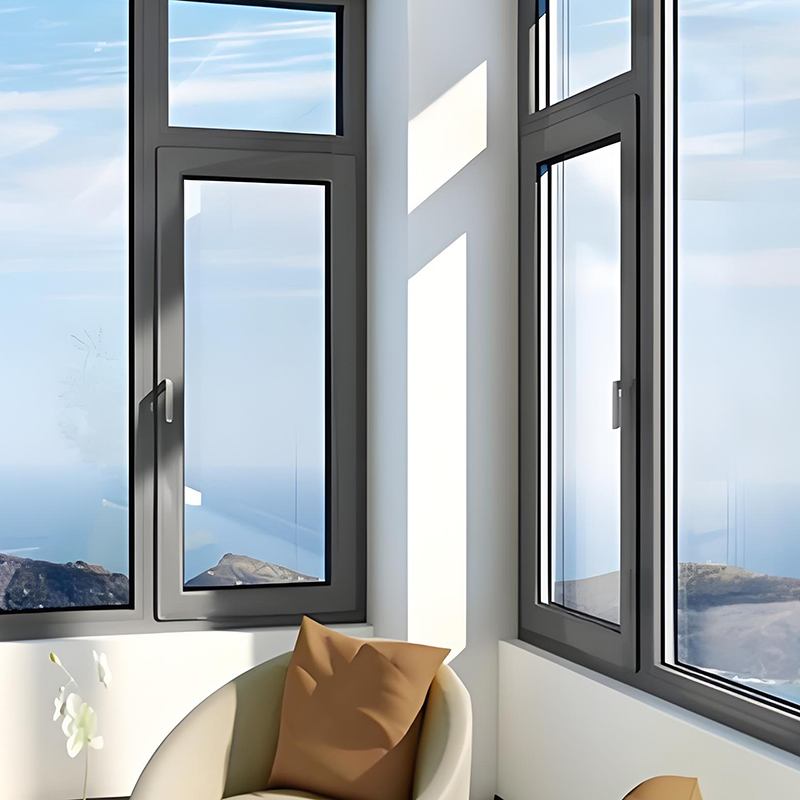

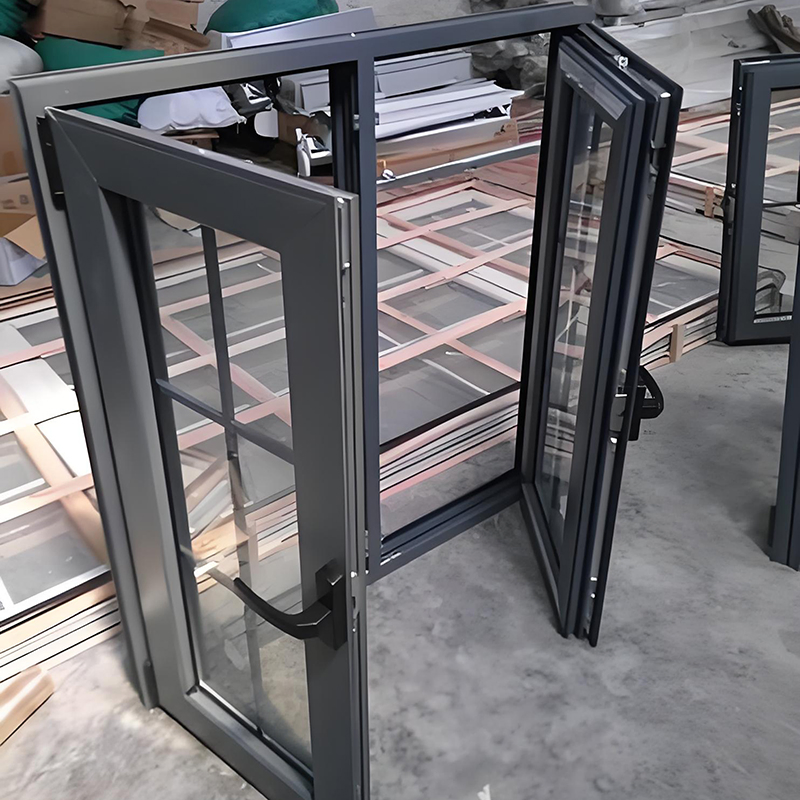

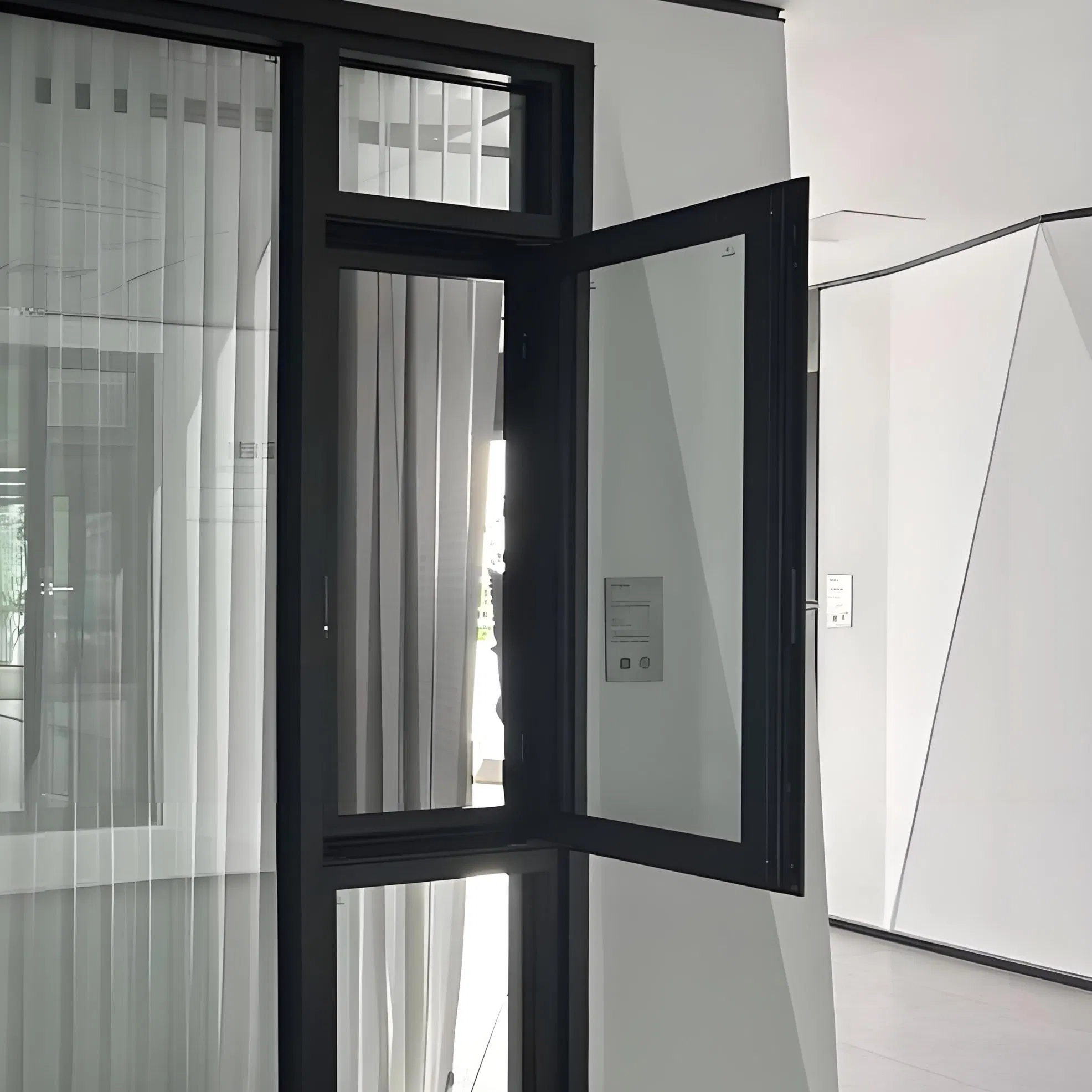

Classic inward casement. Easy exterior cleaning from inside. Ideal for residential buildings.

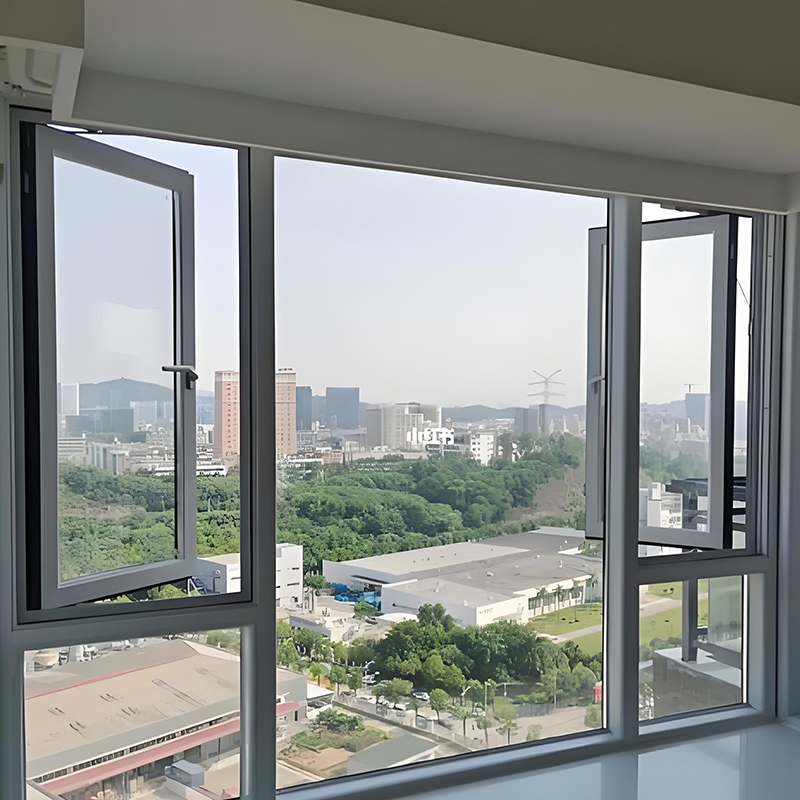

Dual-function: tilt for ventilation, turn for full opening. Recommended for high-rise buildings.

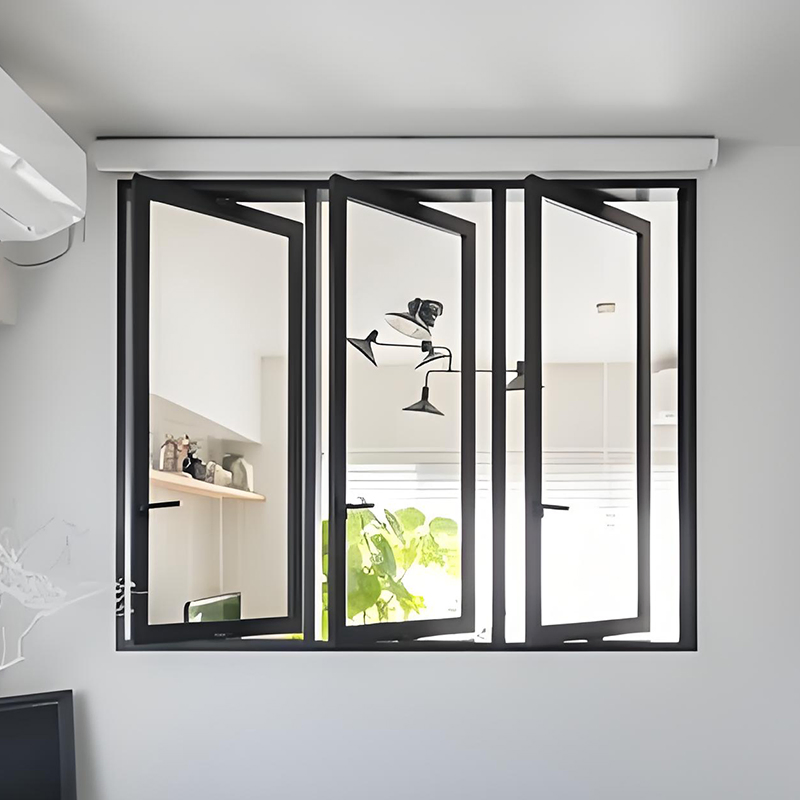

Outward casement for maximum interior space. Common in European and Australian markets.

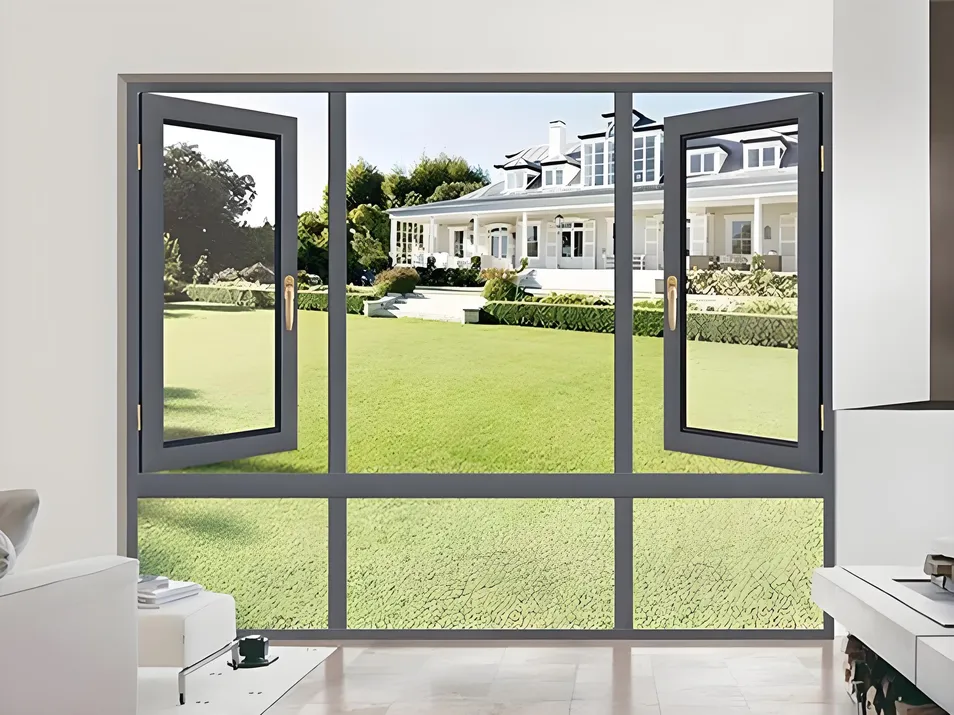

Premium thermal & acoustic comfort for luxury residences

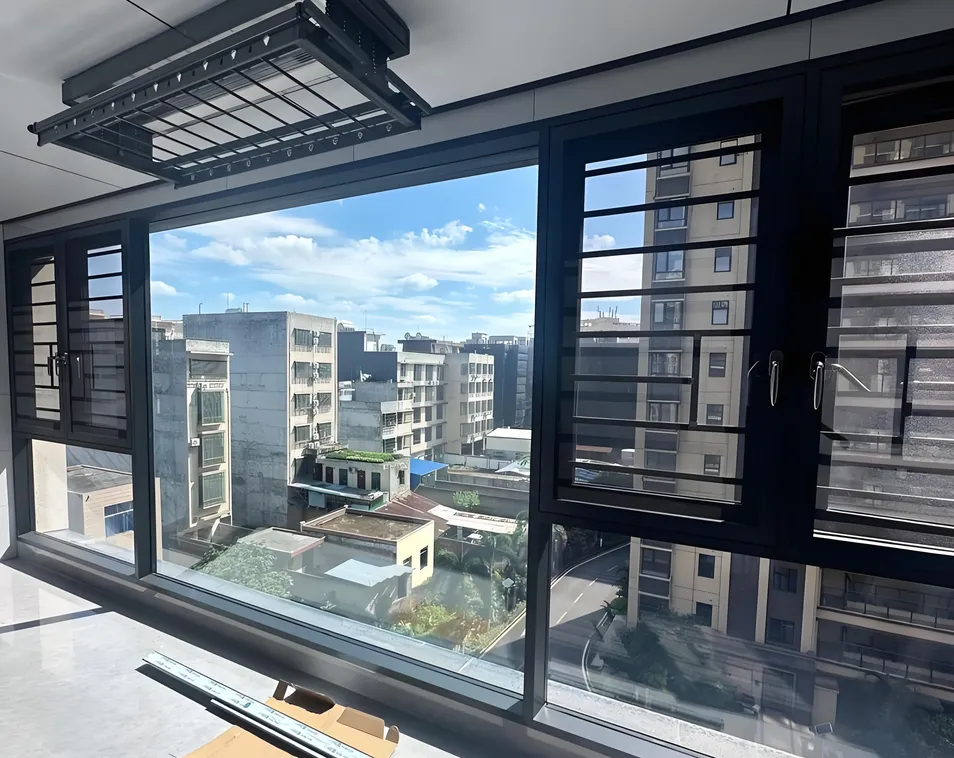

Excellent wind resistance + tilt & turn for safe ventilation

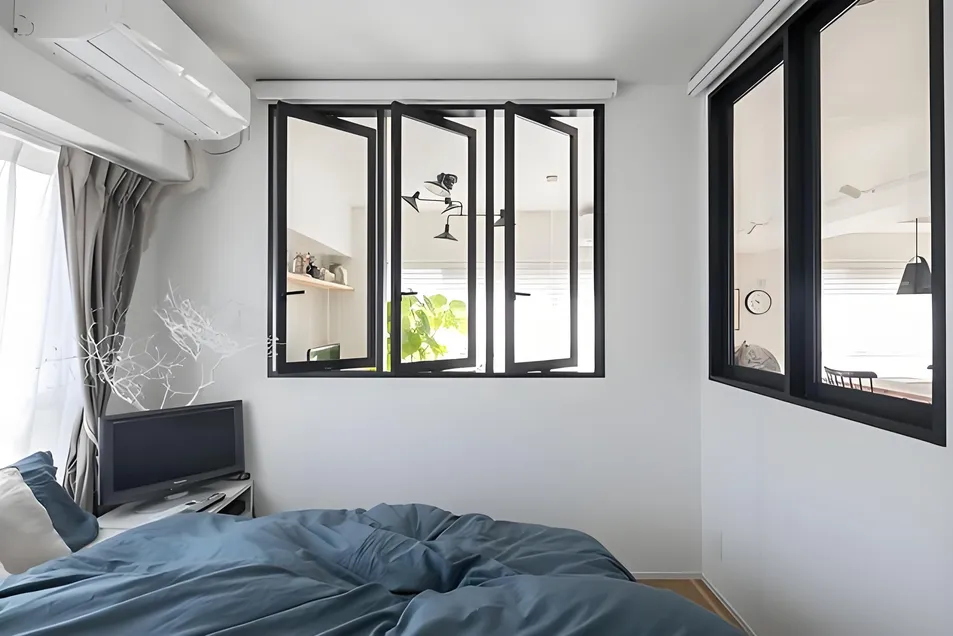

Sound insulation ensures guest comfort and satisfaction

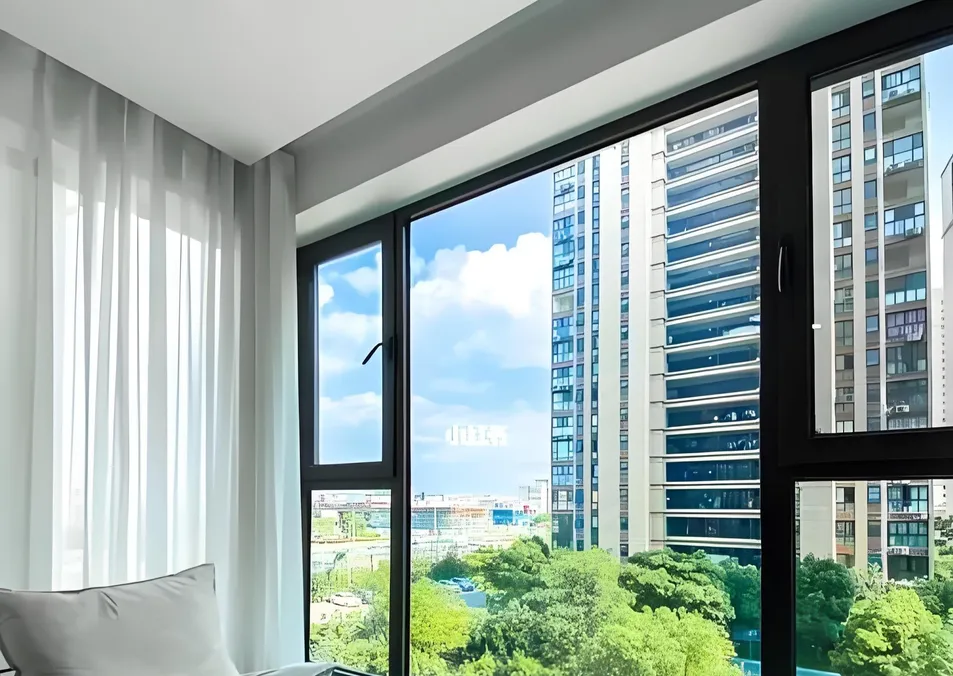

Energy-saving performance reduces HVAC costs significantly
Your Trusted Aluminium Window Partner
We are a one-stop thermal break aluminium solutions provider. Our comprehensive product range spans thermal break casement windows, sliding windows, system windows (tilt & turn), swing doors, sliding doors (ultra-narrow & heavy-duty lifting), custom folding doors & windows, sunrooms, and aluminium profiles & hardware accessories — covering every aluminium fenestration need from a single supplier. We serve residential developers, commercial contractors, and importers across 30+ countries with factory-direct pricing, OEM/ODM flexibility, and reliable lead times.
A: The 90 Series features built-in PA66 nylon thermal break strips (20–24mm width) reinforced with 25% glass fiber. This breaks the heat transmission path in the aluminum profile, achieving a superior insulation value (K ≤ 2.8 W/m²·K), which is upgradeable to 1.8 W/m²·K when combined with Low-E glass options.
A: Due to its engineered multi-cavity structure, triple-seal EPDM gaskets, and specialized double or triple glazing configuration, the window effectively dampens external noise by 35dB or more. It is an excellent choice for buildings located near noisy streets, expressways, or airports.
A: Absolutely. With a robust wind pressure resistance rating of 2500 PA, a security rating of A, a thickened profile wall thickness of 1.8mm to 2.0mm, and integrated 304 stainless steel diamond mesh screens with multi-point locking systems, these windows are heavily optimized for both security and stability in high-rise buildings.
A: We support diverse surface treatments including powder coating, PVDF, and wood grain transfer. Key color choices include Sand Grey, Coffee Brown, White, Black, and customized wood grain styles. For hardware, we offer premium components from global leading brands like HOPO and Stanford.
A: These windows are equipped with a hidden water drainage design that directs rain outward efficiently and prevents accumulation. Together with the triple-seal EPDM structure, they deliver exceptional water tightness of up to 700 PA and an airtightness rating of Grade 6.
