ORM Windows
1 / 5

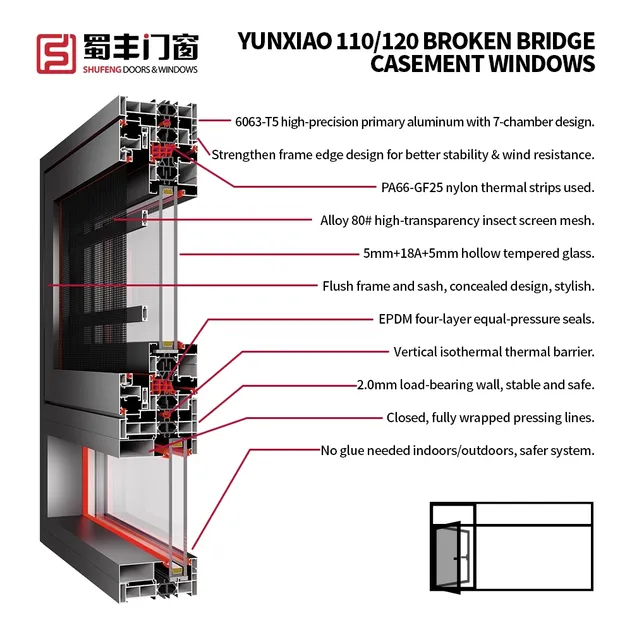

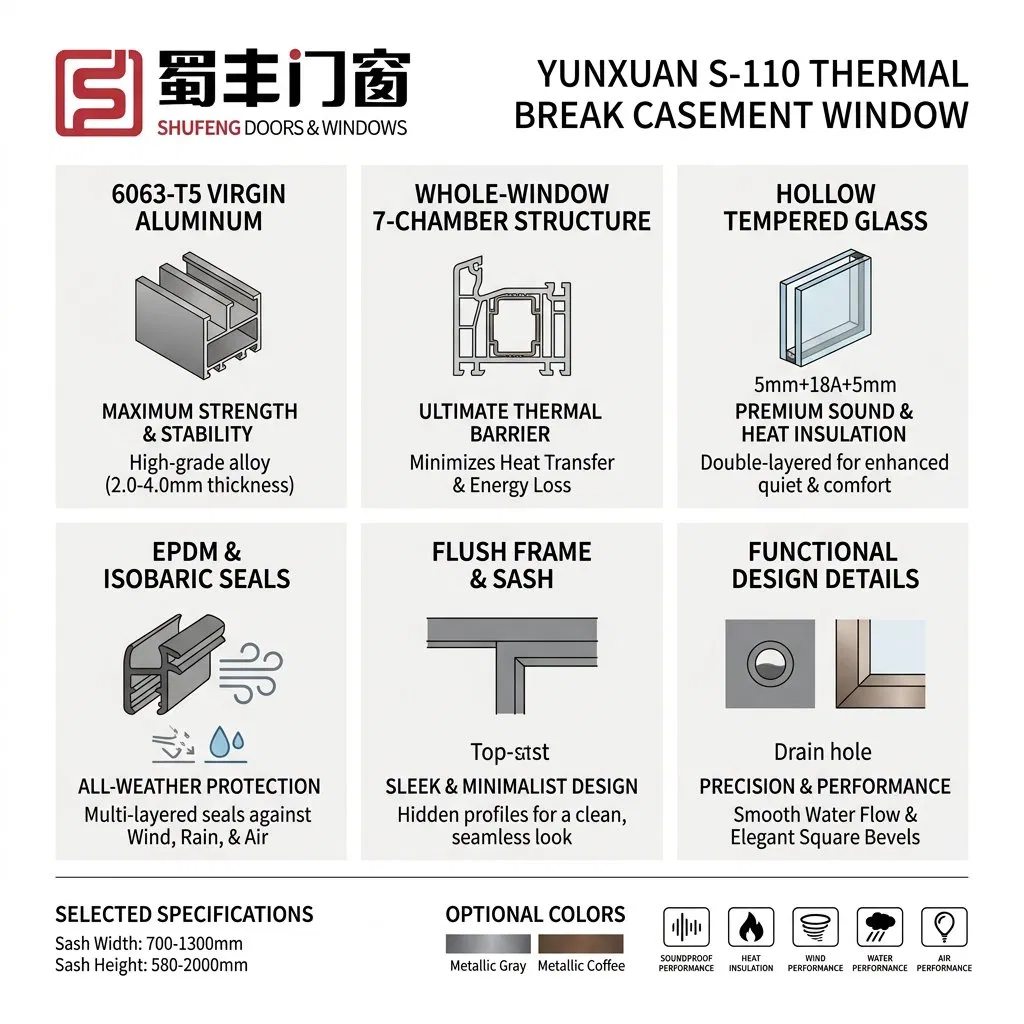

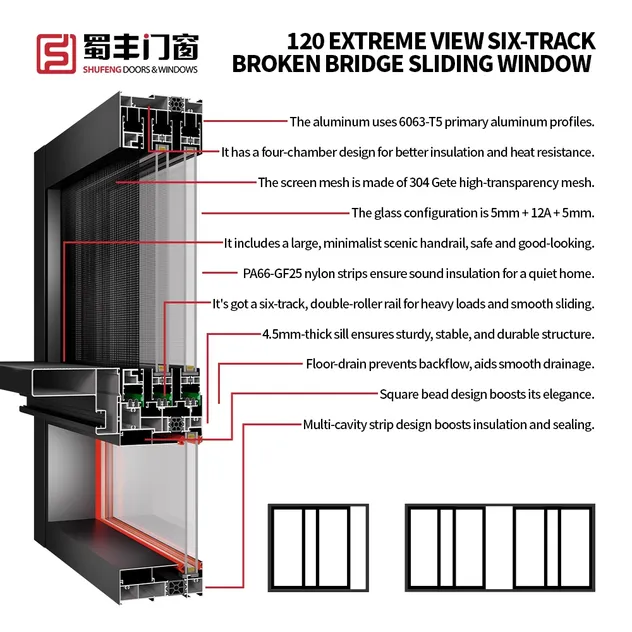

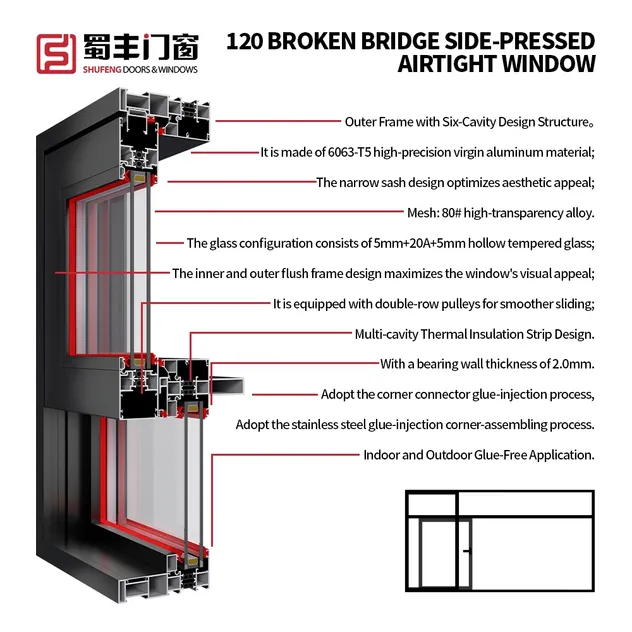

High precision 6063-T5 aluminum, wall thickness 2.0-3.0mm.
After 100,000 cycles of testing, super load-bearing, comfortable and durable, open smoothly and perfectly match the form, anti-theft performance is excellent.

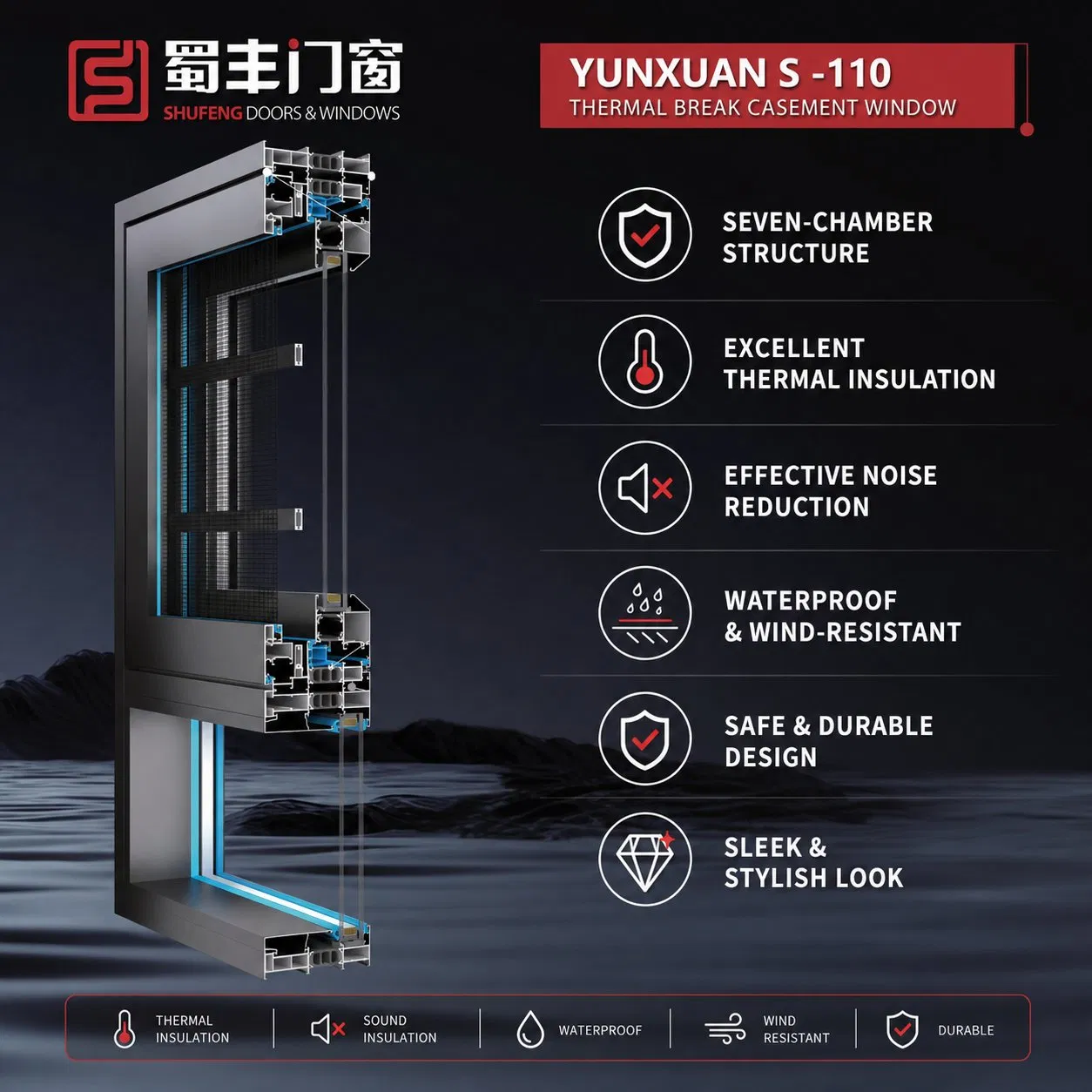

The appearance of the structure design using the fan, frame surface flush design, visual effect is more beautiful, so that the sealing strip is hidden inside the profile, it effectively improves the service life of doors and windows.
High strength corner code components: Combined with a full system pin gluing process, improve the stability and tightness of the corner connection locations.
Powder spraying process, anti-corrosion, anti-aging, 20 years do not fade.
Modern and minimalist: giving the space a bit more of an original aesthetic and giving a simple, comfortable and high-end home experience.
| Project Name | Details |
|---|---|
| Project Name | Aluminum alloy window |
| Contour Thickness | Window thickness: 1.4 mm, 1.8 mm, 2.0 mm, 3.0 mm Door thickness: 1.4 mm, 2.0 mm, 3.0 mm, 5.0 mm |
| Size | Customized |

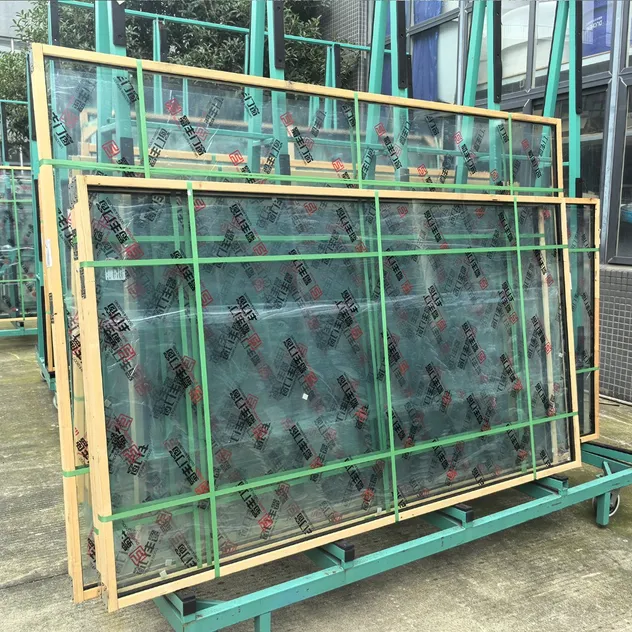

| Type of Glass | Double-glazed glass: 5mm+12Air+5mm, 5mm+18Air+5mm, 5mm+20Air+5mm, 5mm+27Air+5mm 6mm+12Air+6mm, 6mm+18Air+6mm, 8mm+15Air+8mm, 10mm+15Air+10mm, 12mm+12Air+12mm Special glass: Low-E glass Laminated glass: 5 mm + 0.76 PVB + 5 mm, 6 mm + 0.76 PVB + 6 mm, 8 mm + 0.76 PVB + 8 mm |
| Surface Treatment | Powder coating |
| Hardware Brand | German century-old hardware brand VBH RLS, a top hardware brand in China |

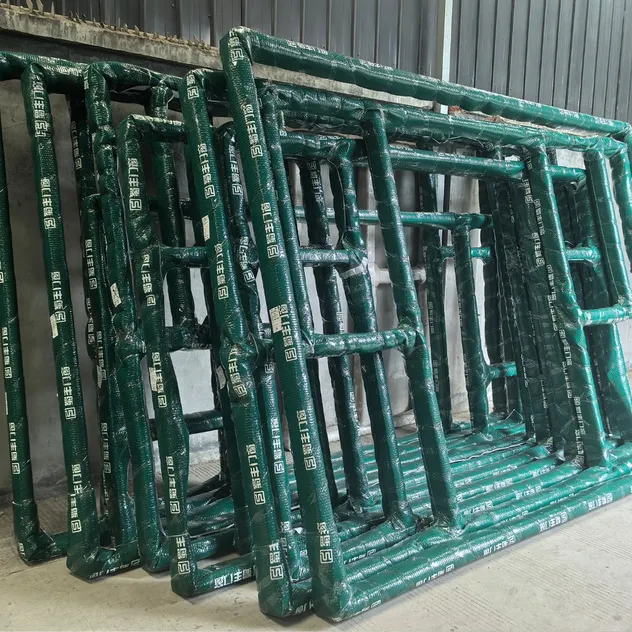

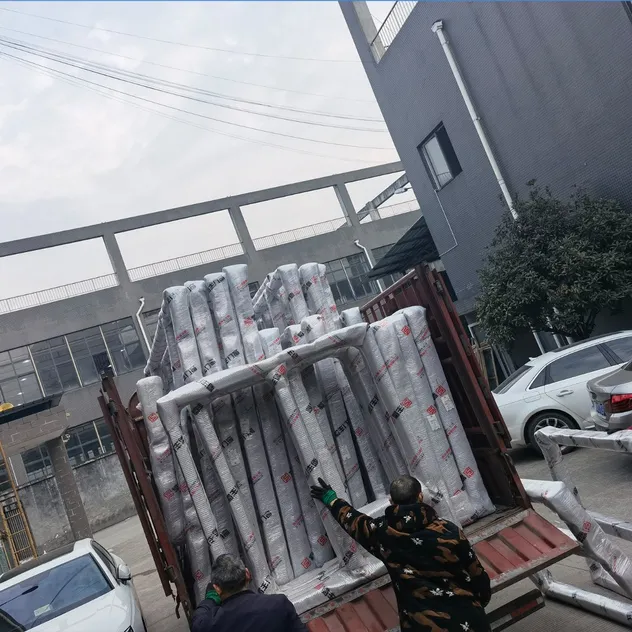

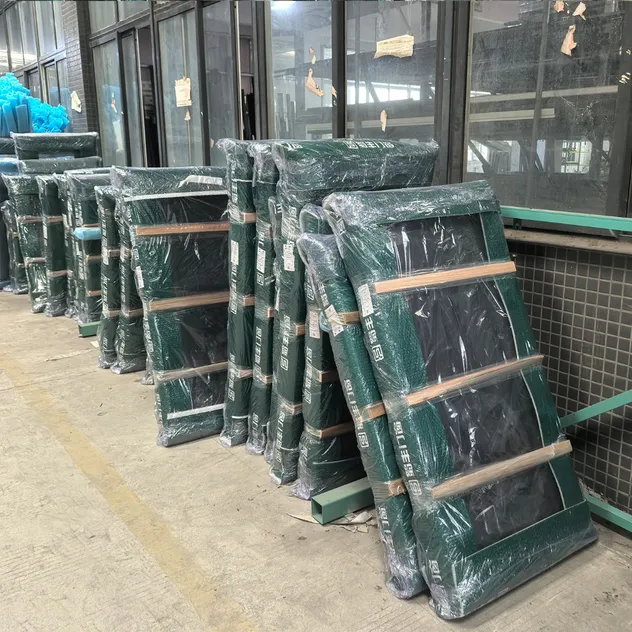

| Packaging | Thickened brand pearl cotton, Wooden box |
| Color | Grey, coffee, white, black Large single batch quantities can be customized |
| Performance Parameters | |||||
|---|---|---|---|---|---|
| Seq. | Test Item | Unit | Test Results | Level Determination | |
| 1 | Air tightness performance (under positive pressure of 10Pa) |
Air permeability per unit seam length q1 | [m³/(m·h)] | 1.4 | Level 6 |
| Air permeability per unit area q2 | [m³/(m²·h)] | 2.3 | Level 7 | ||
| 2 | Air tightness performance (under negative pressure of 10Pa) |
Air permeability per unit seam length q1 | [m³/(m·h)] | 1.3 | Level 6 |
| Air permeability per unit area q2 | [m³/(m²·h)] | 2.2 | Level 7 | ||
| 3 | Water tightness performance | Pa | 350 | Level 4 | |
| 4 | Wind resistance performance | Grading detection positive pressure | kPa | 2.68 | Level 4 |
| Wind resistance performance | kPa | 2.69 | Level 4 | ||
| 5 | Thermal insulation performance | Heat transfer coefficient | W/(m²·K) | 2.2 | Level 6 |

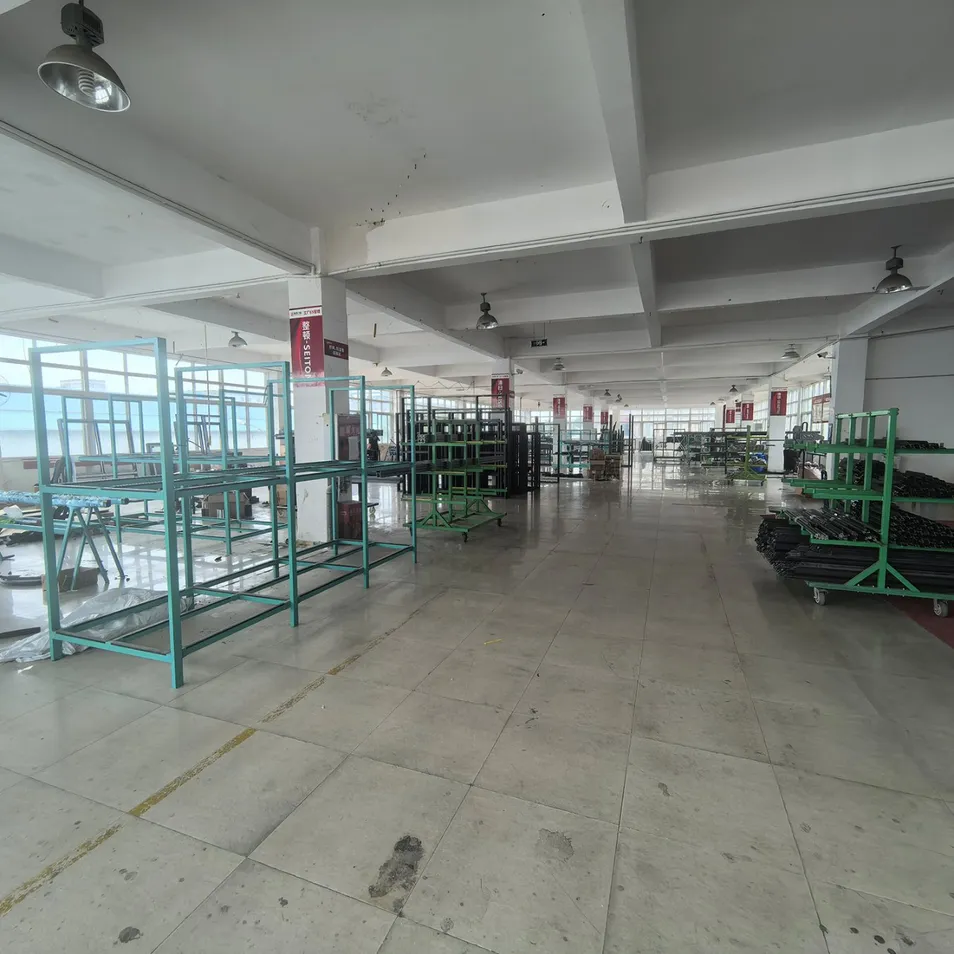

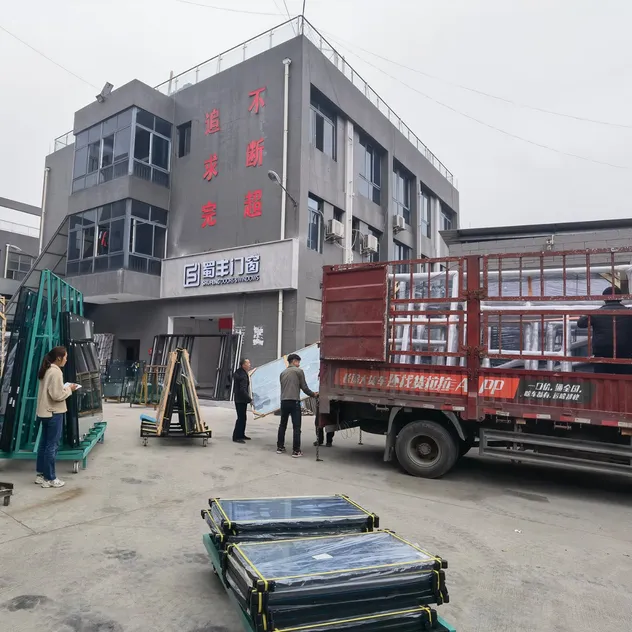

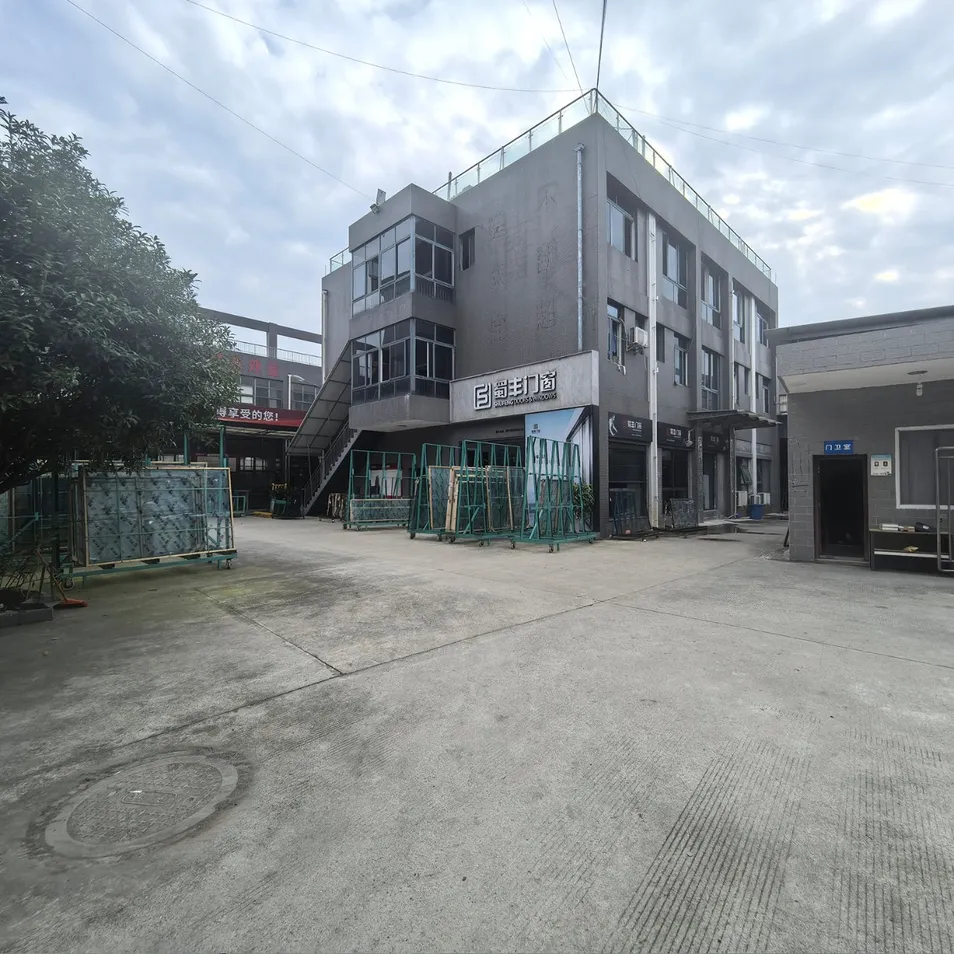

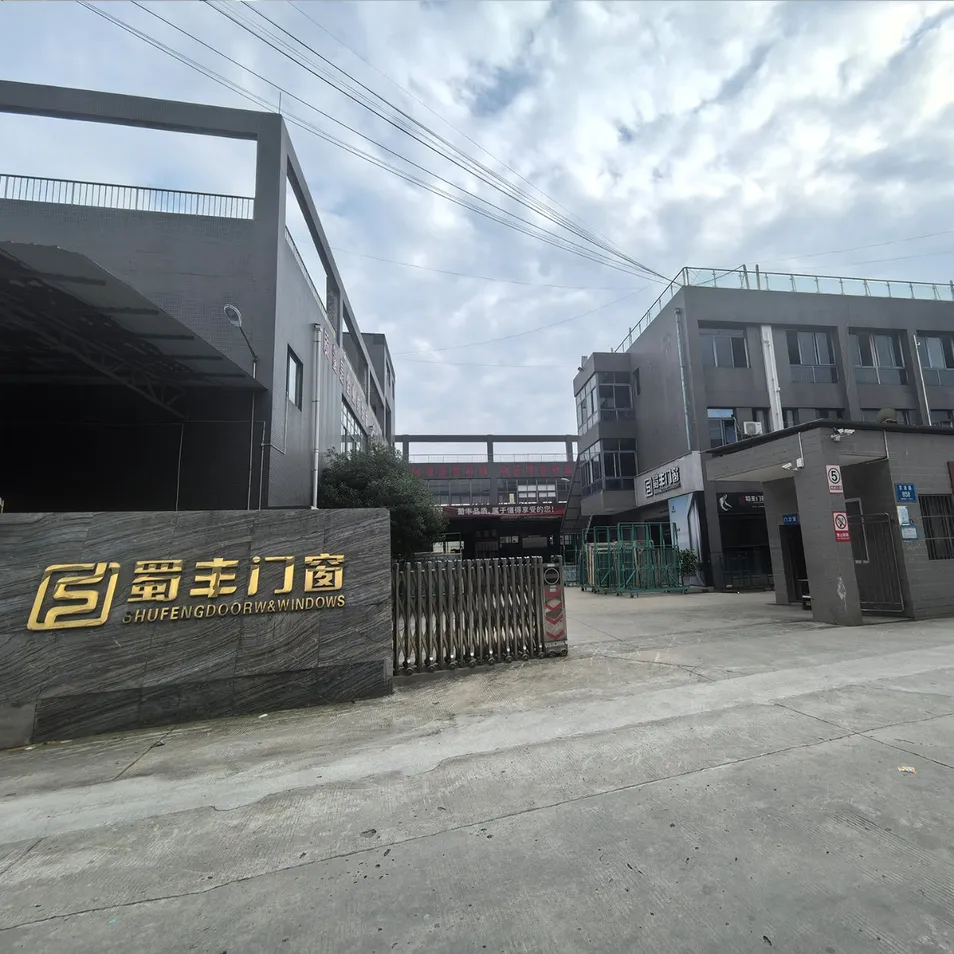

The manufacturing factory was founded in 2014. The facility covers an area of 7,000 square meters. The enterprise integrates door and window design, research and development, deep processing, manufacturing, sales, and service. Over the past 10 years of development and growth, we have consistently provided high-quality products, excellent technical support, and complete after-sales services for our distribution customers. Adhering to inheritance and innovation, we are committed to building a benchmark aluminum door and window enterprise brand. We strive to develop outstanding standards in construction, products, quality, efficiency, team, service, and culture, enabling a wide range of users to use high-end system door and window products, build beautiful homes, make rational use of resources, and make due contributions to promoting the healthy development of the construction field and environmental protection!
