ORM Windows
1 / 5

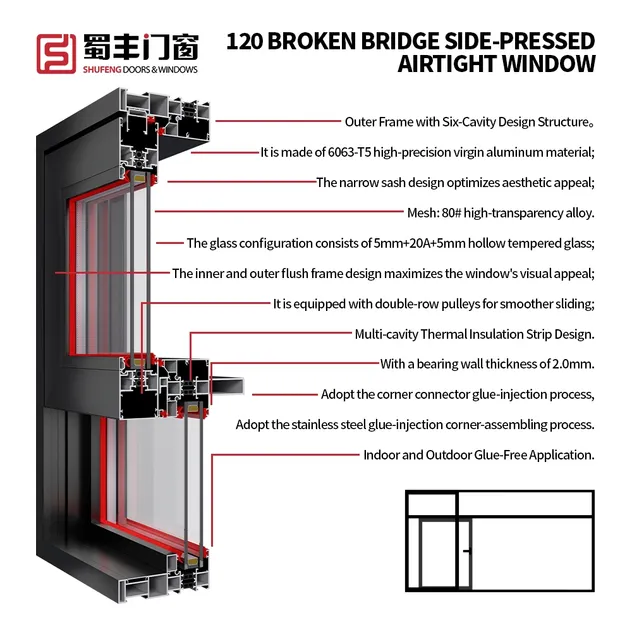

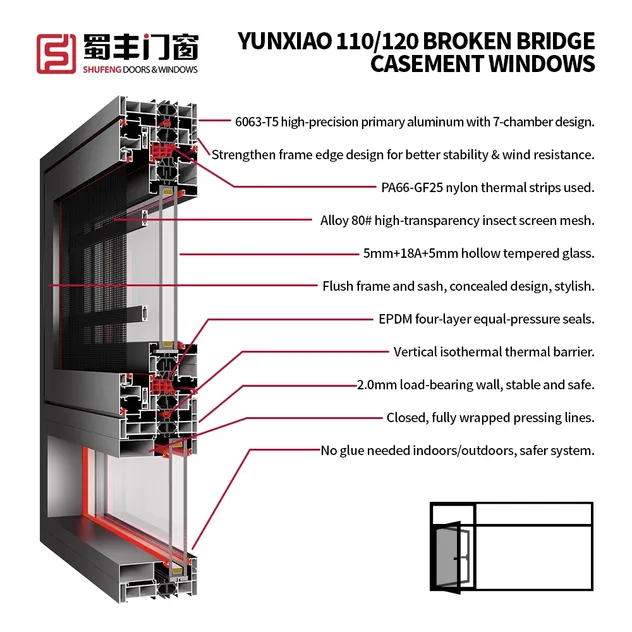

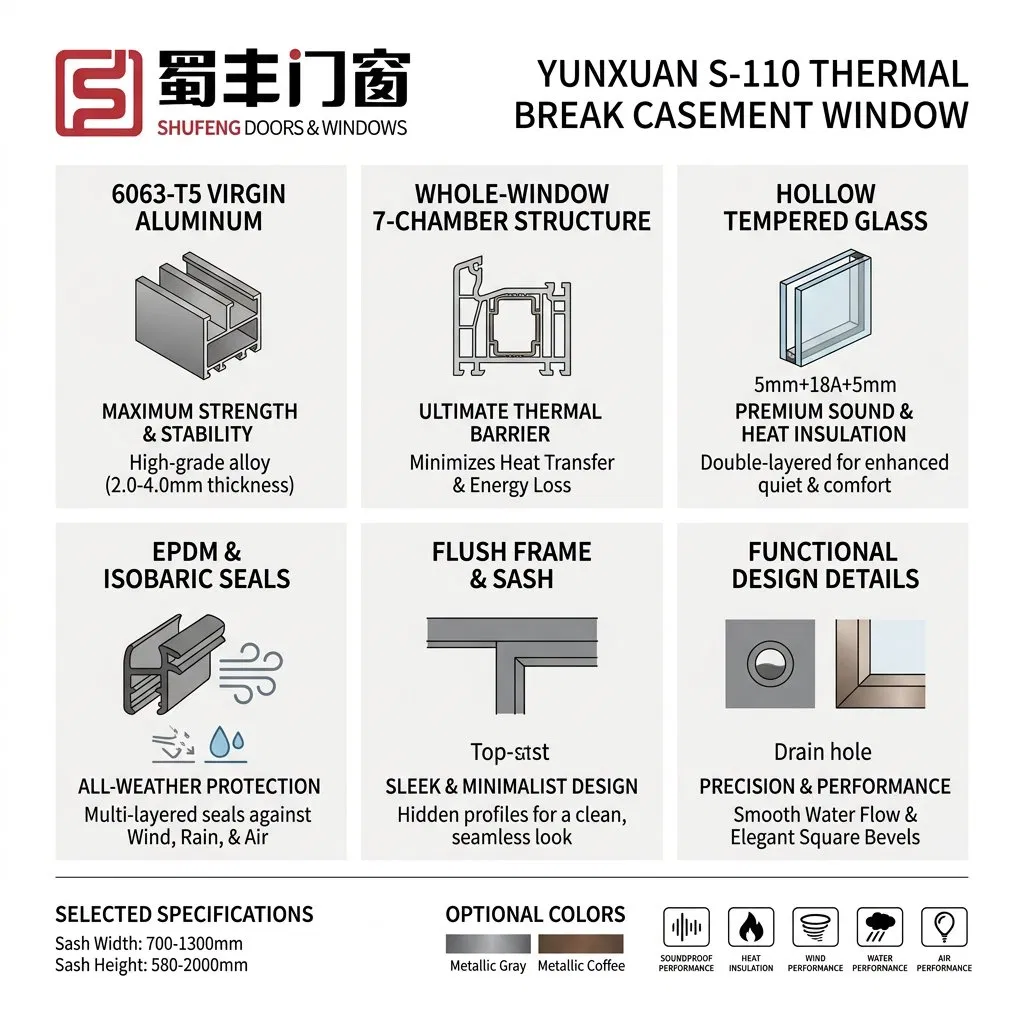

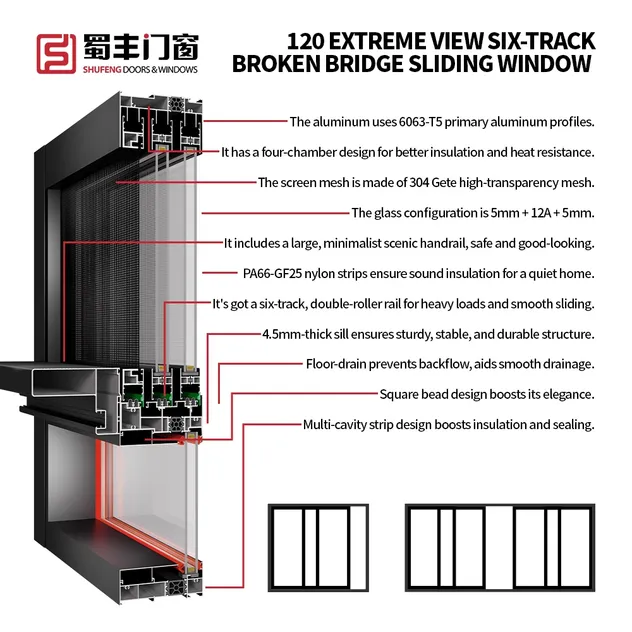

High precision 6063-T5 aluminum, wall thickness 2.0-3.0mm.
After 100,000 cycles of testing, super load-bearing, comfortable and durable, open smoothly and perfectly match the form, anti-theft performance is excellent.

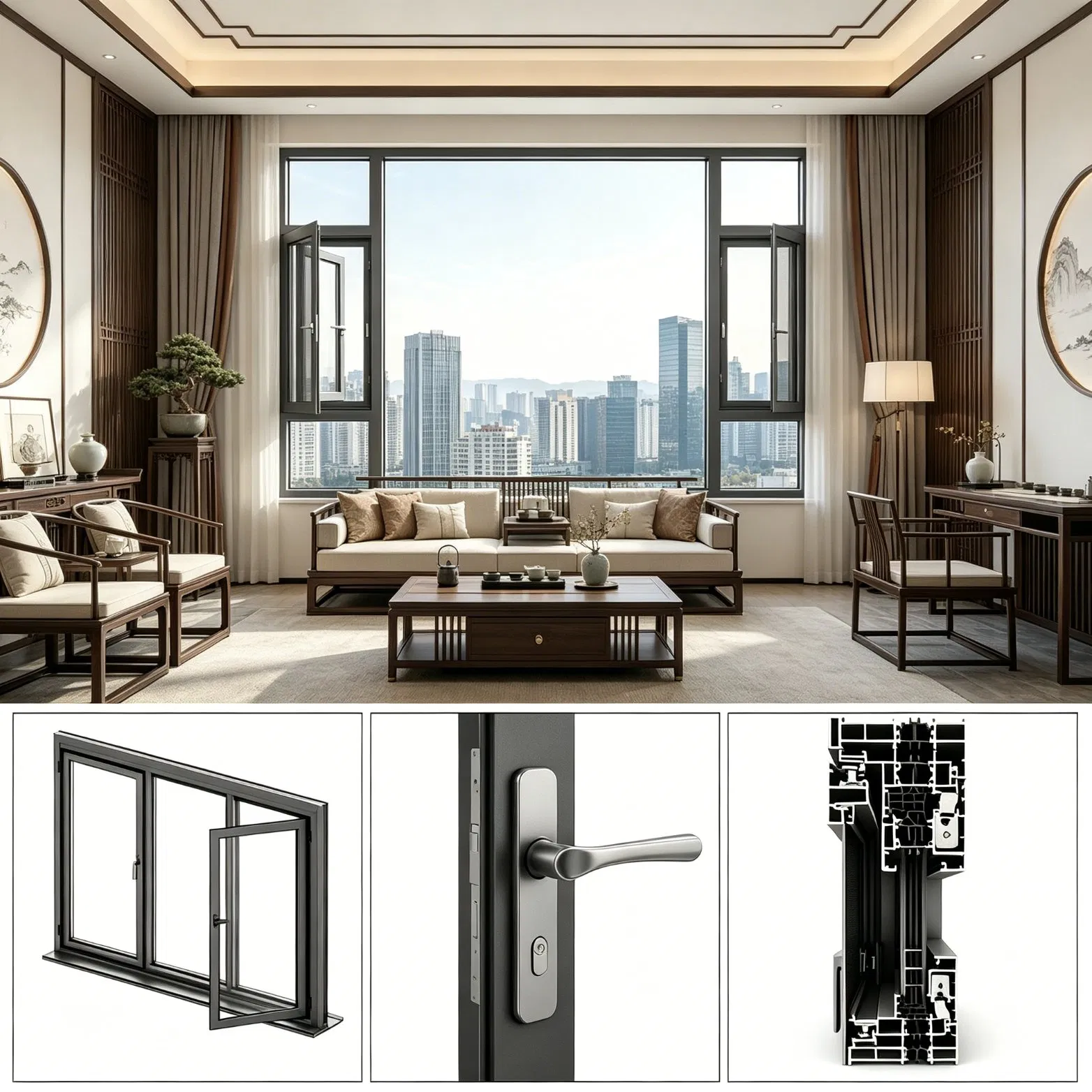

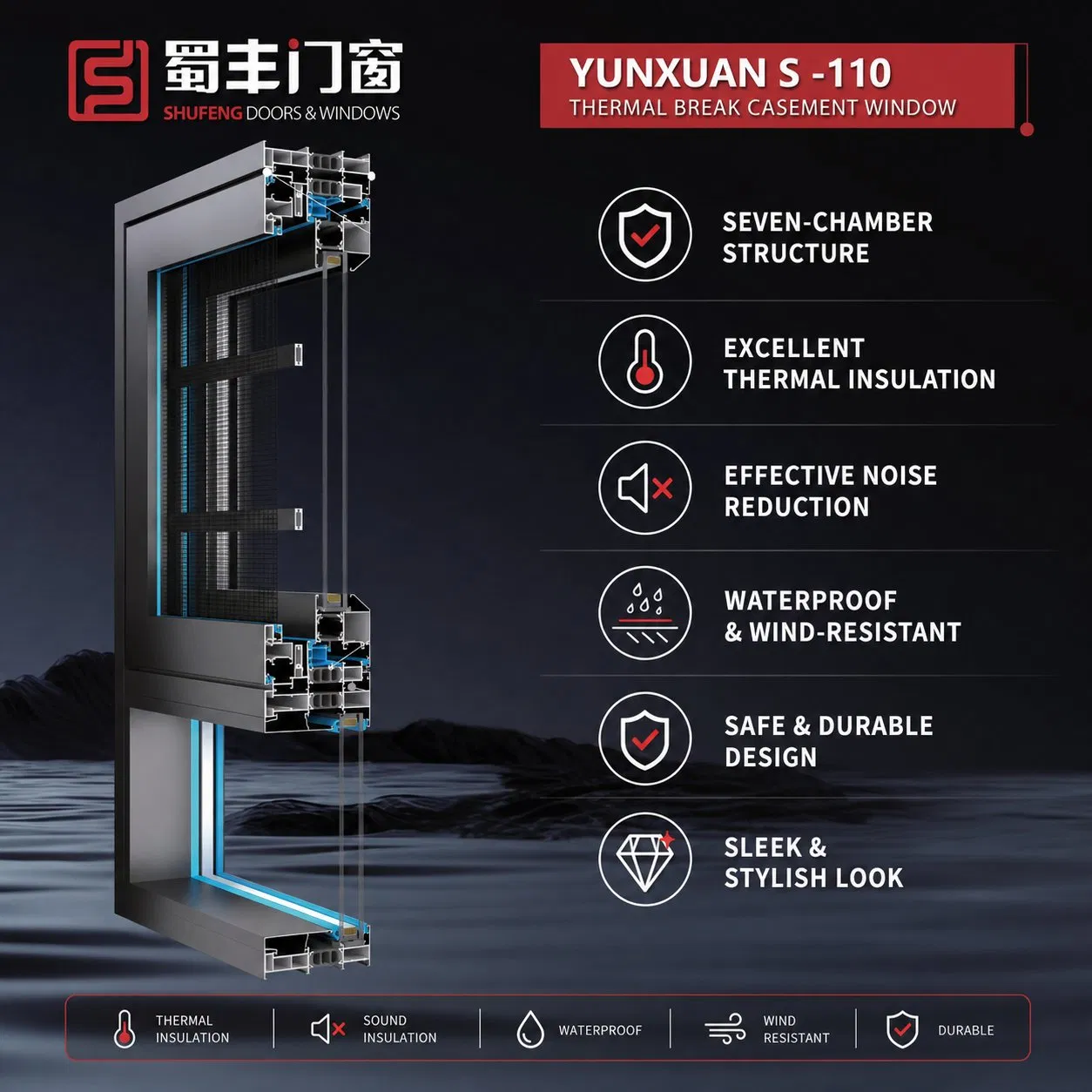

The appearance of the structure design using the fan, frame surface flush design, visual effect is more beautiful, so that the sealing strip is hidden inside the profile, it effectively improves the service life of doors and windows.
High strength corner code components: Combined with a full system pin gluing process, improve the stability and tightness of the corner connection locations.
Powder spraying process, anti-corrosion, anti-aging, 20 years do not fade.
Giving the space a bit more of an original aesthetic and giving a simple, comfortable and high-end home experience.
| Project Specifications | |
|---|---|
| Project Name | Aluminum alloy window |
| Contour thickness | Window thickness: 1.4 mm, 1.8 mm, 2.0 mm, 3.0 mm Door thickness: 1.4 mm, 2.0 mm, 3.0 mm, 5.0 mm |
| Size | Customized |
| Type of glass | Double-glazed glass: 5mm+12Air+5mm, 5mm+18Air+5mm, 5mm+20Air+5mm, 5mm+27Air+5mm 6mm+12Air+6mm, 6mm+18Air+6mm, 8mm+15Air+8mm, 10mm+15Air+10mm, 12mm+12Air+12mm Special glass: Lowe glass Laminated glass: 5 mm + 0.76 PVB + 5 mm, 6 mm + 0.76 PVB + 6 mm, 8 mm + 0.76 PVB + 8 mm |
| Surface treatment | Powder coating |
| Hardware brand | German century-old hardware brand VBH RLS, a top hardware brand in China |

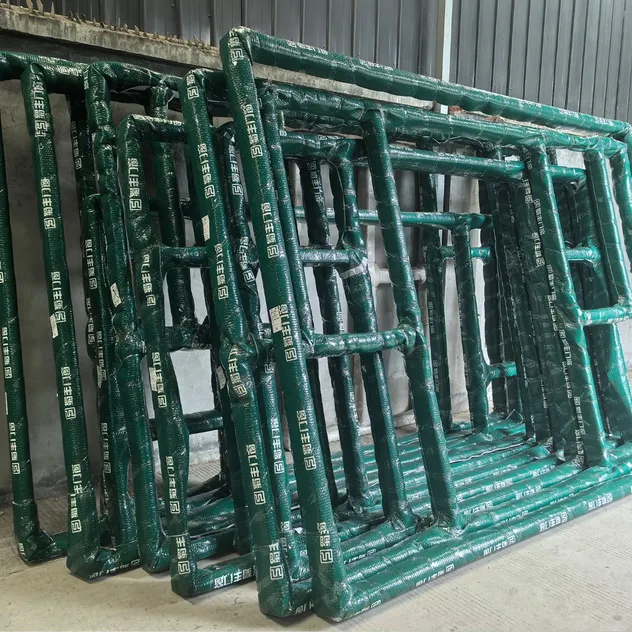

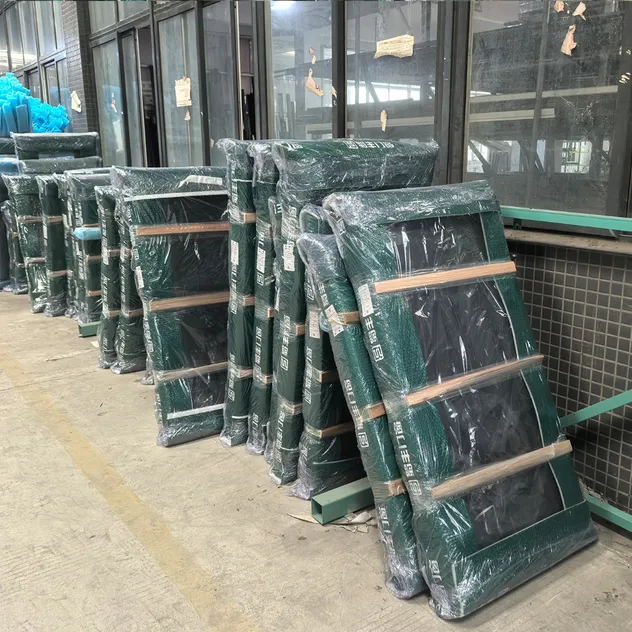

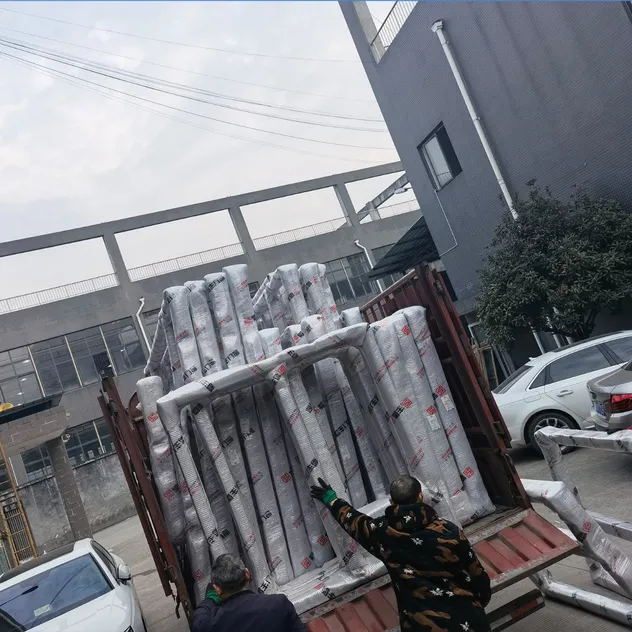

| Packaging | Thickened brand pearl cotton Wooden box |
| Color | Grey, coffee, white, black Large single batch quantities can be customized |
| Sequence | Test Item | Unit | Test Results | Level Determination |
|---|---|---|---|---|
| 1 | Air tightness performance (under positive pressure of 10Pa) - seam length q1 - area q2 |
[m³/(m·h)] [m³/(m²·h)] |
1.4 2.3 |
Level 6 Level 7 |
| 2 | Air tightness performance (under negative pressure of 10Pa) - seam length q1 - area q2 |
[m³/(m·h)] [m³/(m²·h)] |
1.3 2.2 |
Level 6 Level 7 |
| 3 | Water tightness performance | Pa | 350 | Level 4 |
| 4 | Wind resistance performance (Grading detection positive / negative) | kPa | 2.68 / 2.69 | Level 4 |
| 5 | Thermal insulation performance (Heat transfer coefficient) | W/(m²·K) | 2.2 | Level 6 |

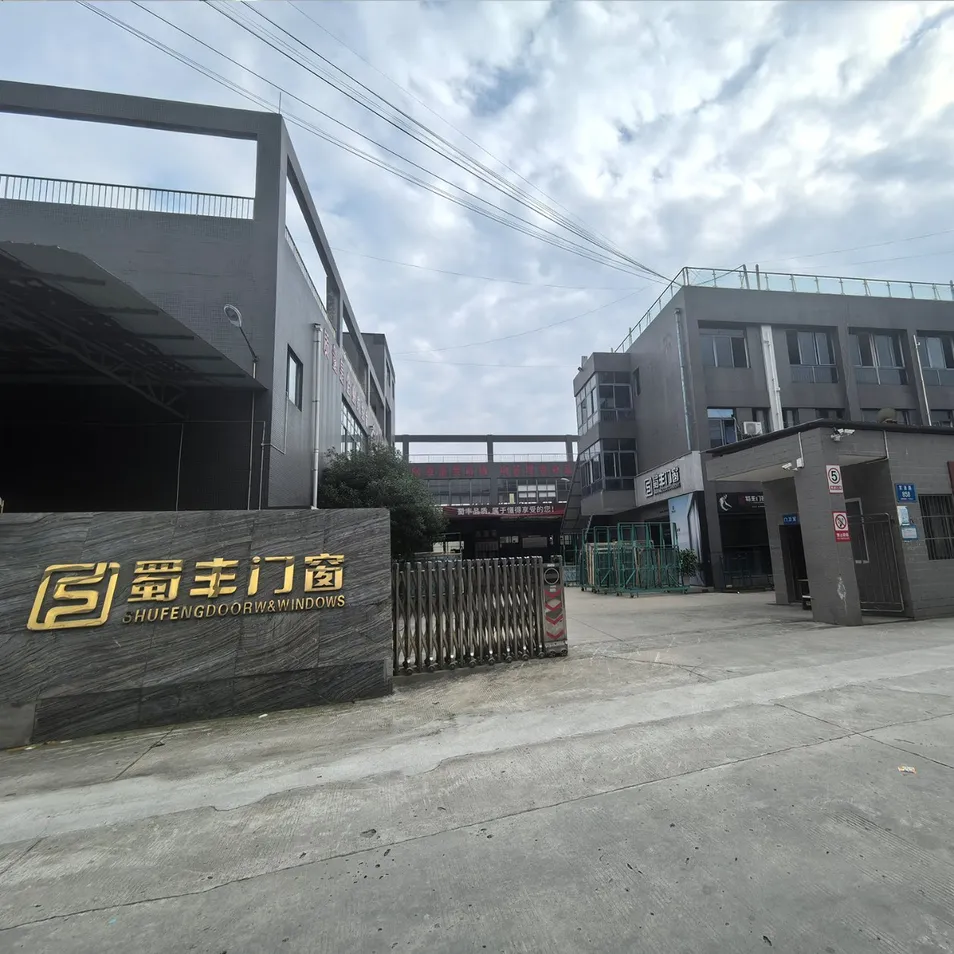

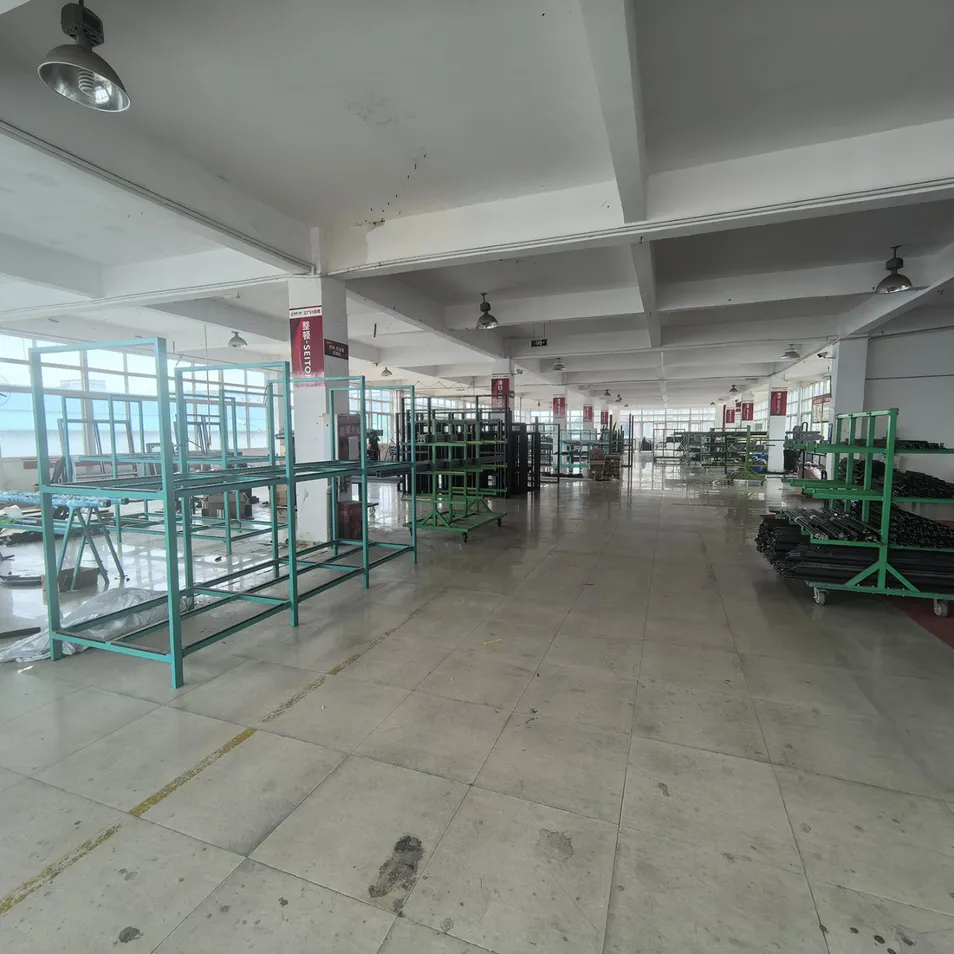

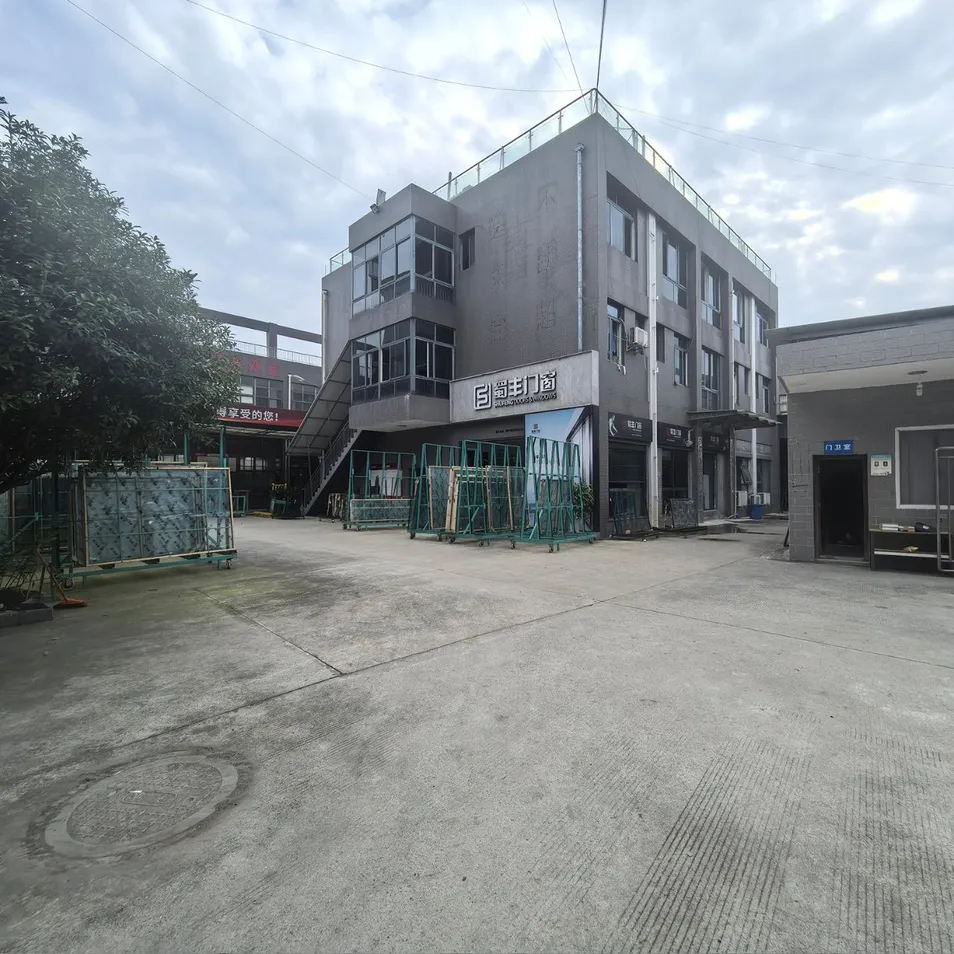

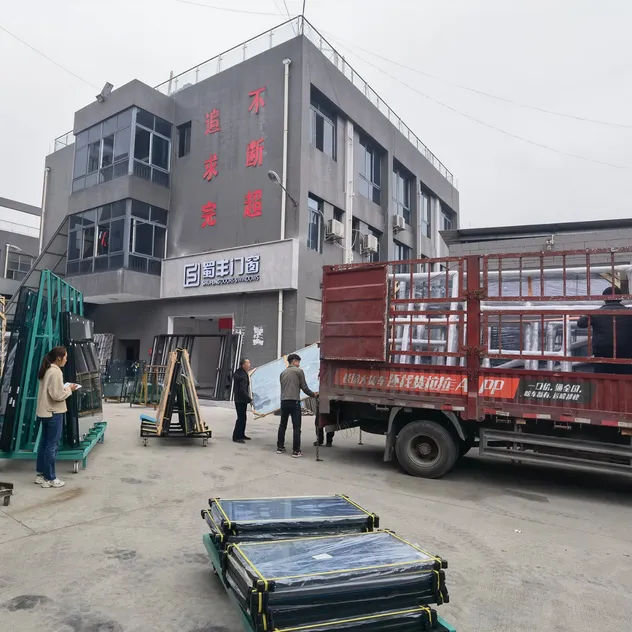

Founded in 2014, our manufacturing facility covers an area of 7,000 square meters. We are a specialized enterprise integrating design, research, development, deep processing, manufacturing, sales, and comprehensive services for modern door and window systems.
During our decade of growth and development, we have committed ourselves to providing premium-grade products, professional technical support, and responsive after-sales service. Adhering to the values of inheritance and innovation, we strive to build a benchmark brand in the industry, outstanding in construction, quality, efficiency, team structure, service, and corporate culture. We enable users to build beautiful homes and utilize resources efficiently, contributing to sustainable environmental protection and modern construction standards.
